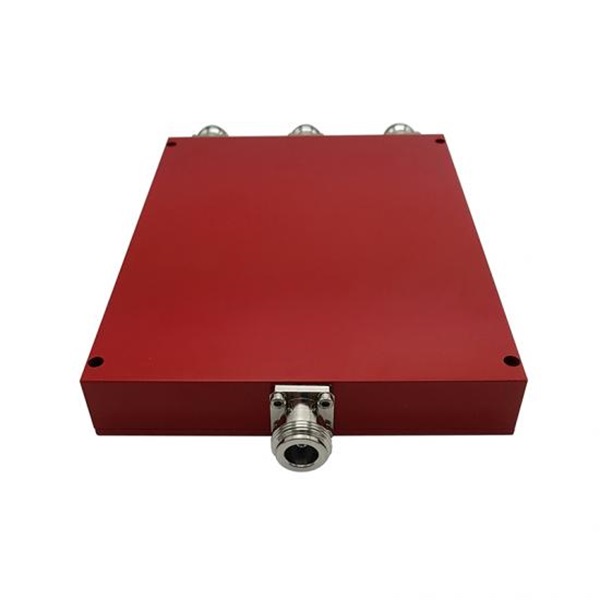

Public Safety 3 way Power Splitter 137-960MHz,50W,N Connector,IP65

137-960MHz 3 way Wilkinson Power Divider/Splitter with low insertion loss,low VSWR and widely used for IBS BTS DAS

Item NO.:
MPS-137-960-03-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Red

Inquiry now

Products Details

Product Name

Public Safety Power Splitter 137-960MHz,50W,N Connector,IP65 for IBS, BTS,DAS

Product Features

◆ Covers All Public Safety bands

◆ VHF,UHF&PS 700/800/900MHz

◆ Minimal RF Insertion Loss

◆ Low VSWR

◆ High Port to Port Isolation

◆IP65,Indoor/Outdoor Use

Technical &Mechanical Specifications

Model No.	MPS-137-960-03-NF
Freq(MHz)	137-960
Input Port Number	1
Output Port Number	3
Split Loss(dB)	4.8
Insertion Loss(dB)	≤1.6
VSWR	≤1.3
Port Isolation(dB)	≥18
Average Power(W)	50
Impedance	50 ohm
Connector	N-Female
Color	Red
Weight(lbs)	1.8 lbs
Environmental	-35~+65℃
Application	Indoor &Outdoor, IP65
Relative Humidity	5%-95%
Dimensions（inches）	4.75”x6.25”x0.9”


Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Public Safety 3 way Power Splitter 137-960MHz,50W,N Connector,IP65
Im interested in your "Public Safety 3 way Power Splitter 137-960MHz,50W,N Connector,IP65", please inform me more detailed product information and price. Thankyou!
