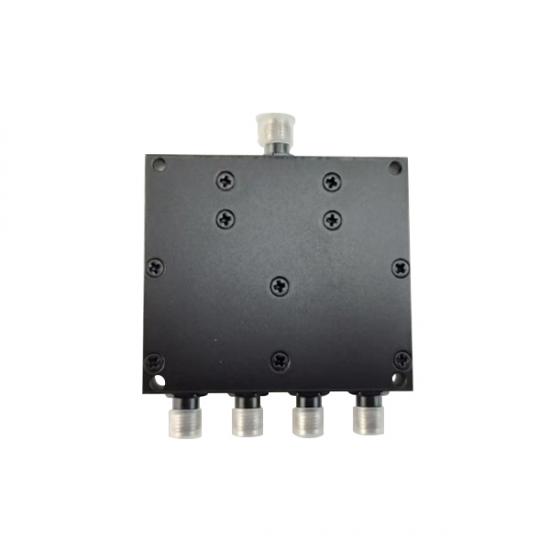

Low VSWR 30W 2-8GHz SMA-F 4Way Power Divider Used For In-Building Solutions

High Quality 30W 2-8GHz 50 Ohm 4Way Power Divider with SMA-F Connector,widely used for In-building Solutions

Item NO.:
MPS-28-4D-SF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

Low VSWR 30W 2-8GHz SMA-Female 4Way Power Splitter used for In-building Solutions

Product Features

◆ Wide Frequency Band 2-8GHz

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR & Insertion Loss

◆ Indoor Application

◆ Widely used for In-building Solutions

Technical & Mechanical Specifications

Model No.	MPS-28-4D-SF
Freq(GHz)	2-8GHz
Impedance	50 ohm
Input VSWR	1.35
Output VSWR	1.25
Insertion Loss(dB)	≤ 1.0dB(Excluding theoretical loss 6.0dB)
Isolation(dB)	18dB
Amplitude Balance(dB)	±0.3
Phase Balance	±4°
Power Rating(W)	30W
Power Rating As Combiner(W)	2W
Connector Type	5*SMA-F
Finish	Black
Operating Temp(deg)	-45~+85

Mechanical Drawing
