Product Name

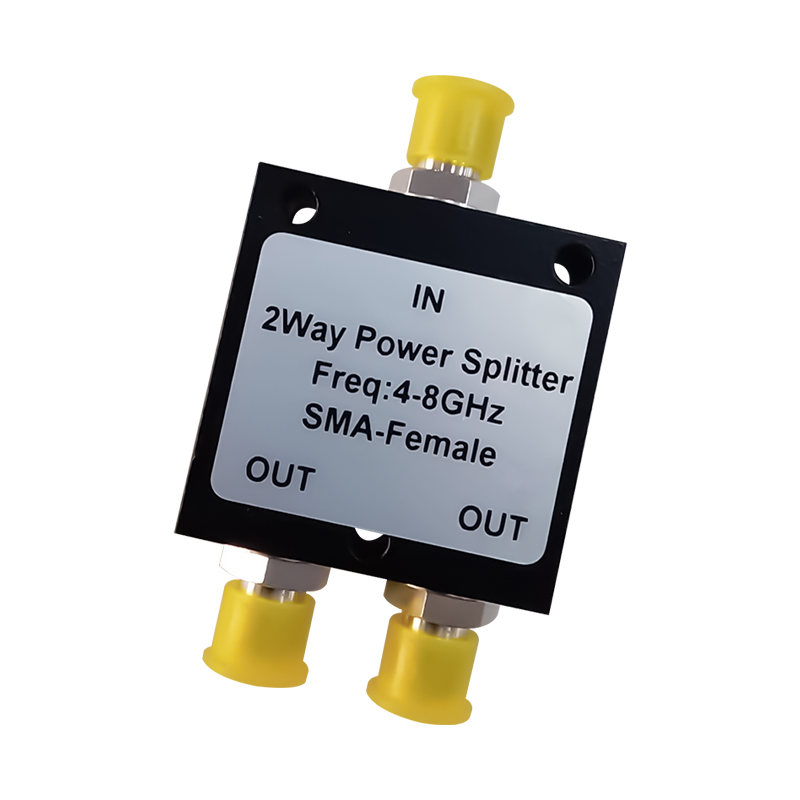

2 Way 4-8GHz Wilkinson Power Divider Splitter
These new design is used for Public Safety,DAS System.
Product Features
Technical &Mechanical Specifications
|
Freq(GHz) |
4-8 |
|
Insertion Loss |
≤ 0.4dB（Excluding theoretical loss3.0 dB） |
|
Input Port VSWR |
Typ.1.16 / Max.1.25 |
|
Output Port VSWR |
Typ.1.14 / Max.1.20 |
|
Isolation |
Typ.28dB / Min.21dB |
|
Amplitude Balance |
±0.2dB |
|
Phase Balance |
±3° |
|
Impedance |
50 Ohms |
|
Input/Output Connectors |
SMA-Female（Passivated Stainless Steel） |
|
Power Rating |
Splitter:20W; Combiner:1W |
|
Operation Temperature |
-45℃ ~ +85℃ |
|
Surface Finishing |
Black paint |
|
Outline Dimensions |
28*28*10（mm） |
OUR SERVICES
1. Professional skills support for RF Passive Components 4-8GHz 2Way Wilkinson/Microstrip Power Splitter/Divider with SMA-Female@IN / SMA-Female@OUT
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!
1. Wireless Communication Systems
Base Stations: Used for signal distribution and combining, enhancing signal coverage.
Mobile Communication: Distributing signals to multiple antennas in mobile networks.
2. Radar Systems
Signal Distribution: Dividing transmit signals in radar systems to improve detection capabilities.
3. Testing and Measurement
Signal Testing: Used in RF test equipment for signal distribution and monitoring.
4. Satellite Communication
Signal Distribution: In satellite ground stations, distributing received signals for stable communication.
5. Electronic Warfare
Signal Processing: Used for distributing and processing signals for jamming and protection.
6. Sensor Networks
Data Collection: Distributing signals in wireless sensor networks for multi-point data acquisition.
7. Internet of Things (IoT)
Device Interconnection: Connecting multiple sensors and actuators in IoT devices for seamless communication.
8. Consumer Electronics
Wireless Audio Devices: In wireless speakers and headphones, optimizing and distributing signals.
Microstrip power dividers are essential in modern communication and electronic systems due to their compact structure, low loss, and wide frequency range.
