Product Name
698~960MHz×2/1710~2690MHz×2/1710~2690MHz 65°/65°/65° 16.6/17.4/17.6dBi 2°~10°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features
◆ 2×8 Pin circle connector according to IEC 60130- 9 and AISG
◆ Daisy chain in:Male,Daisy chain out:Female
◆ Pin1:12V;Pin3:RS485B;Pin5:RS485A;Pin6:10-30V
◆ Pin7:GND;Pin2&Pin4&Pin8:N/C
Technical & Mechanical Specifications
Frequency Range(MHz)
698~803
790~862
880~960
Polarization
±45°
Gain at mid tilt (dBi)
16.0
16.2
16.7
Horizontal 3dB beamwidth (°)
68±6.0
67±5.4
68±3.0
Vertical 3dB beamwidth (°)
8.6±0.8
8.0±0.5
7.4±0.5
Front-to-back ratio (dB)Total power,±30°
>22
>25
>25
Cross-polar ratio (dB)at Boresight
>19
>19
>20
Electrical downtilt (°)
2~10
Sidelobe suppression (dB) (First sidelobe above main beam)
>15
>15
>16
VSWR
<1.5
Isolation: intra-system (dB)
≥25
Isolation: inter-system (dB)
≥25（R1//R2）
≥28（Other）
Intermodulation IM3 (2×43dBm carrier)
≤-153 dBc
Impedance (Ω)
50
Max. power per input (W) @50°C
400
RET Model
TRCU-TQ10P2V01
RET Protocal
AISG 2.0/3GPP
Lightning protection
Dc Ground

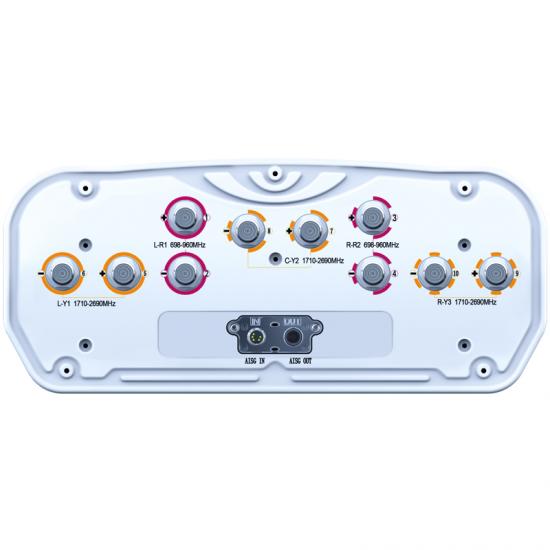

Connector
10×4.3-10 Female
Application
