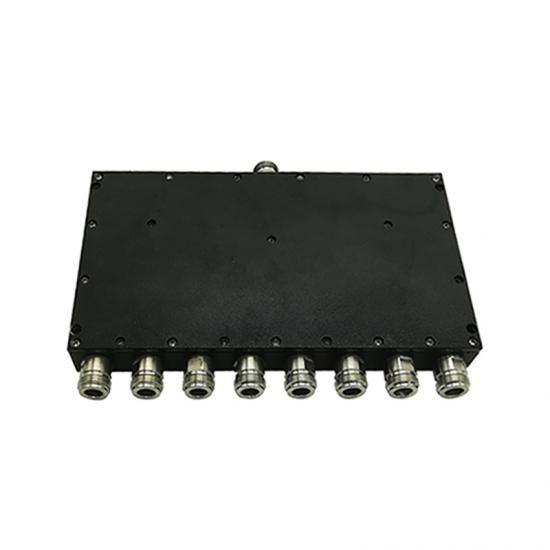

698-2700MHz 8Way Wilkinson Power Divider NF Connector

Maniron 8 way power divider, power combiners are available with Type N, SMA, TNC, BNC, and QMA connector options. All models are optimized for broadband operation covering the frequency ranges from 350 to 1000 MHz, 698 to 2700 MHz, 1 to 2 GHz, and 2.4 to 6 GHz with good performance. These Wilkinson hybrid, 8 way, power divider, power combiners are reciprocal units that divide and combine signals with equal facility.

Item NO.:
MWPS-727-8-NF
Lead Time:
According to quantity
Product Orgin:
China
Shipping Port:
Shanghai,shenzhen
Color:
Black or customized
MOQ:
2

Inquiry now

Products Details

Product Name

698-2700MHz 0.6-2.7G 8 Way Power Splitter, Divider,Combiner, 50W Low VSWR with N-F for IBS, DAS, BTS with Fast Delivery, Low Cost

Maniron Power Dividers-Combiners-Splitters are offered in coaxial, stripline, and connectorized ... 6-Way 0.5 to 18 Ghz. Power Dividers: 2-way to 16-way up to 60 Ghz

Product Features

◆Wide Frequency Band

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor Application

◆Widely used for In-building Solutions

Technical &Mechanical Specifications

Item No	MWPS-727-8-NF
Freq(MHz)	698-2700MHz
Input Port Number	1
Output Port Number	8
Insertion Loss(dB)	≤11.5dB
InputVSWR	≤1.35
Output VSWR	≤1.35
Port Isolation(dB)	≥16
Total Input Power(W)	50
Impedance	50 ohm
Connector	N-Female
Application	Indoor
Relative Humidity	5%-95%
Weight(kg)	1.0

Our Services

1. Professional skills support for 698-2700MHz 8way Wilkinson Power Splitter.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!

698-2700MHz 8Way Wilkinson Power Divider NF Connector

Sample is available for testing evaluation.
