50W 700-2700MHz 2 Way Power Splitter with SMA-Female Connector

2 Ways, 700-2700MHz, SMA-Female, 50W,widely used for In-Building Solutions

Item NO.:
MWPS-727-02-SF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Silver Gray

Inquiry now

Products Details

Product Name

50W 700-2700MHz 2 Way Power Splitter with SMA-Female Connector has good performance,such as,low insertion loss,low vswr,which used for In-building Solutions

Product Features

◆Wide band frequency 700-2700MHz

◆ Low VSWR

◆ Low Insertion Loss

◆ Indoor Application

◆ Widely used for In-building Solutions

Technical &Mechanical Specifications

Frequency Range	700-2700MHz
Input Ports	2 ways
Split Loss	3.4dB
Insertion Loss	≤0.5dB
Insolation	≥20dB
VSWR	≤1.30
Average Power	50W
Peak Power	1000W
Product Dimension, HxWxD	88x76x22mm
Product Weight	0.25kg
Connector Type	SMA-Female
Operational Temperature	-35~+65℃
Relative Humidity	5-95%

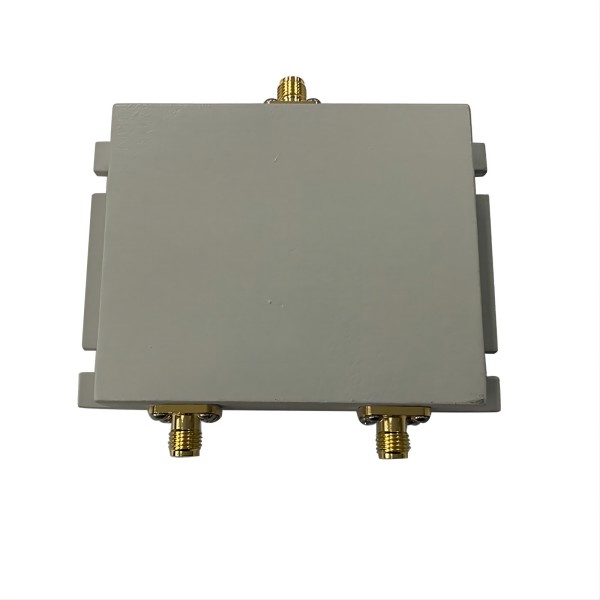

Product Photo
