400-450MHz 8-Way Power Splitter N-F, IP65

400-450MHz 8 way Wilkinson Power Divider/Splitter with low insertion loss,low VSWR and widely used for IBS BTS DAS

Item NO.:
MWPS-4045-08-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

8-Way Power Splitter (400-450MHz,N-F, IP65)

Product Features

◆ Minimal RF Insertion Loss

◆ Low VSWR

◆ High Port to Port Isolation

◆IP65,Indoor/Outdoor Use

Technical &Mechanical Specifications

Model No.	MWPS-4045-08-NF
Freq(MHz)	400-450
Input Port Number	1
Output Port Number	8
Split Loss(dB)	4.8
Insertion Loss(dB)	≤1.5
VSWR	≤1.35
Port Isolation(dB)	≥16
Average Power(W)	50
Impedance	50 ohm
Connector	N-Female
Color	Black
Weight(kgs)	1 approx.
Environmental	-35~+65℃
Application	Indoor &Outdoor, IP65
Relative Humidity	5%-95%
Dimensions（inches）	2289520.5(Connectors not included)

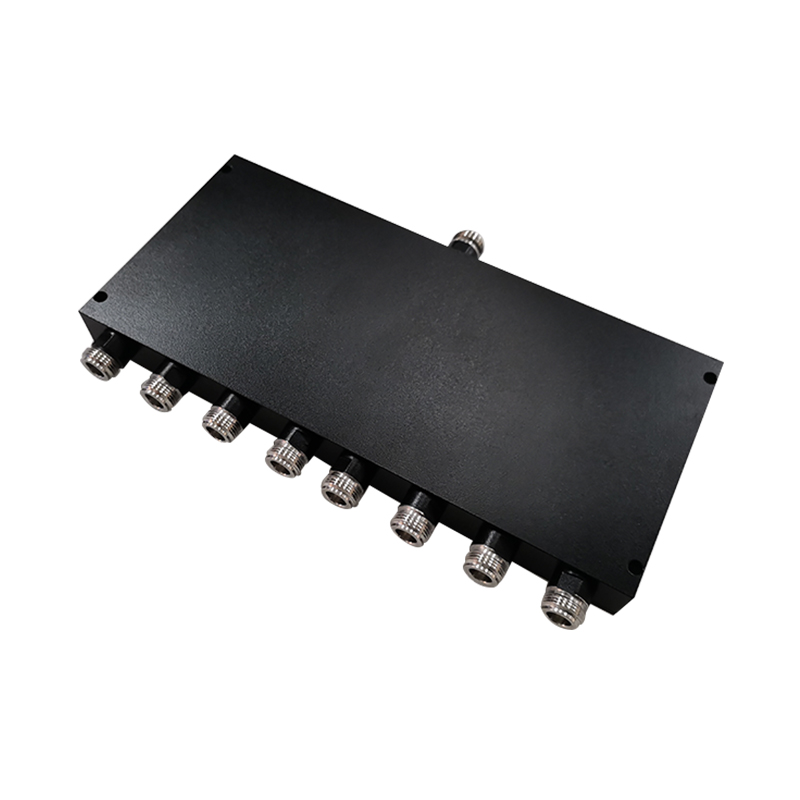

8 way power splitter
