30W 698-600MHz SMA-F 16Way Power Divider

30W 698-600MHz SMA-F 16Way Power Divider

30W 698-600MHz 16Way Power Divider with SMA-Female Connector

Item NO.:
MPS-760-16-SF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Silver Color

Inquiry now

Products Details

Product Name

30W 698-6000MHz SMA-Female Connector 16Way Power Divider

Product Features

◆Subminiature size and light weight

◆Low cost

◆High quality,cost effective and fast delivery

Technical & Mechanical Specifications

Model No.	MPS-760-16-SF
Freq(GHz)	698-600MHz
Impedance	50 ohm
Input VSWR	1.8@698-800MHz,1.5@800-6000MHz
Output VSWR	1.3@698-800MHz,1.3@800-6000MHz
Insertion Loss(dB)	≤16.5dB
Isolation(dB)	16dB minimum
Amplitude Balance(dB)	±0.5
Phase Balance	±6°
Power Handling (W)	30W
Reverse Power(W)	2W per port
Connector Type	SMA-F
Finish	Silver Color
Operating Temp(deg)	-40~+85

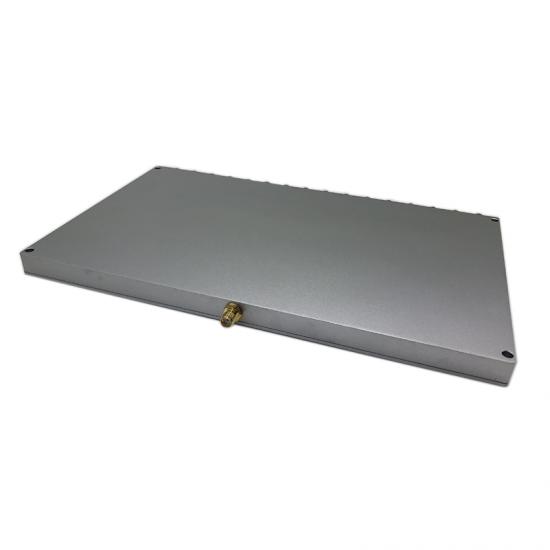

Product Picture
