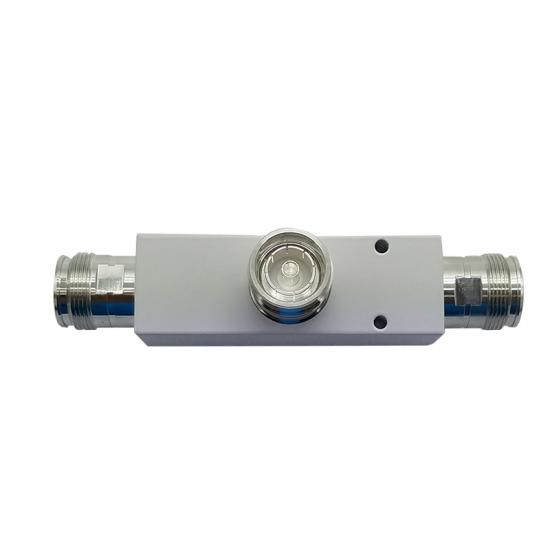

300W 690-3800MHz power tapper 4.8-20dB with 4.3-10-Female low PIM

4.8dB /6dB /7dB /8dB /9dB /10dB /13dB /15dB /20dB,690-3800MHz power tapper has high isolation,low VSWR,low insertion loss and low PIM,which is widely used in IBS projects.
  • Item NO.:

    MNT-738-XXdB-4F-153
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo
  • Color:

    Silver Color
  • Products Details

Product Name

690-2170 MHz & 2300-3800 MHz power tapper with  4.3-10-Female connector,widely for IBS


Product Features

◆ Wide Frequency Band 690-3800MHz

◆ 2G/3G/4G/LTE Coverage

◆ Low VSWR & Insertion Loss

◆ High Isolation

◆ Low Passive Intermodulation

◆ Widely used in IBS projects


Technical & Mechanical Specifications

Splitting ratio

1 : 0.33 : 0.67

1 : 0.25 : 0.75

1 : 0.2 : 0.8

1 : 0.16 : 0.84

1 : 0.11

: 0.89

1 : 0.1

: 0.9

1 : 0.05

 : 0.95

1 : 0.03

 : 0.97

1 : 0.01

 : 0.99

Frequency range

690-2170 MHz & 2300-3800 MHz

Insertion loss

≤ 2.2 dB

≤ 1.7 dB

≤ 1.3 dB

≤ 0.9 dB

≤ 0.8 dB

≤ 0.6 dB

≤ 0.4 dB

≤ 0.3 dB

≤ 0.3 dB

Coupling

4.8 dB

±1.5 dB

6.1 dB

±1.5 dB

7 dB

±1.2 dB

8.6 dB

±1.2 dB

9.5 dB

±1.2 dB

10.4 dB

±1.2 dB

13.2 dB

±1.2 dB

15.1 dB

±1.2 dB

20.1 dB

±1.2 dB

IM - value  3rd order @ 2 x 20 W

≤ -153 dBc

VSWR

≤ 1.3

Power rating

Average Power 300W (CW)

Connectors

4.3-10 female

Temperature range

-30 °C – +75 °C

Degree of protection

IP 65

Environmental conditions

ETSI EN 300019-1-1 Class 1.2

ETSI EN 300019-1-2 Class 2.3

ETSI EN 300019-1-4 Class 4.1E

Weight

0.22 kg
