Maniron Low PIM 698-2700MHz 8.5dBi MIMO Outdoor Directional Pole Mount Panel Antennas

MIMO Outdoor Directional Pole Mount Panel Antennas is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely used for DAS.

Item NO.:
MPA-OD-MIMO-627-8.5
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 698-2700MHz MINO Outdoor Directional Pole Mount Panel Antennas

Product Features

◆ Wide Frequency Band 698-2700MHz

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Electrical Specifications
Frequency Range(MHz)	698-960	1710-2700
Gain(dBi)	5.5	8.5
VSWR	≤2.0	≤1.8
Polarization	±45°
Isolation(dB)	≥12	≥20
Front to Back Ratio(dB)	≥10	≥13
PIM, 3rd Order, 2x20W(dBc)	≤-140 \| -150 \| -153
Horizontal Beam width	90°	65°
Vertical Beam width	78°	60°
Input Impedance	50 Ω
Max. Input Power	50 W
Mechanical Specifications
Connector	2xN \| 4.3-10 Female

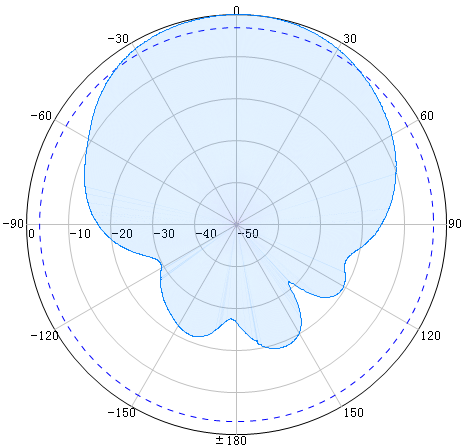

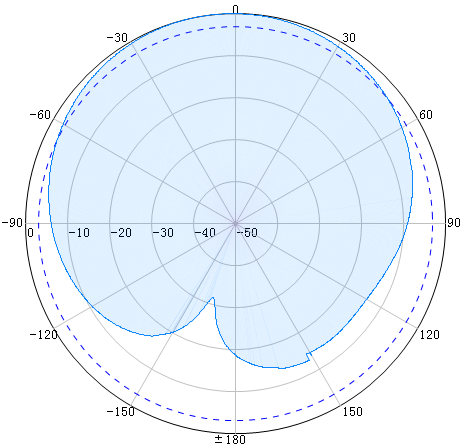

Horizontal

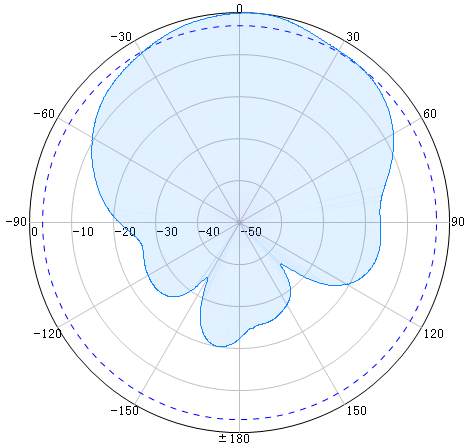

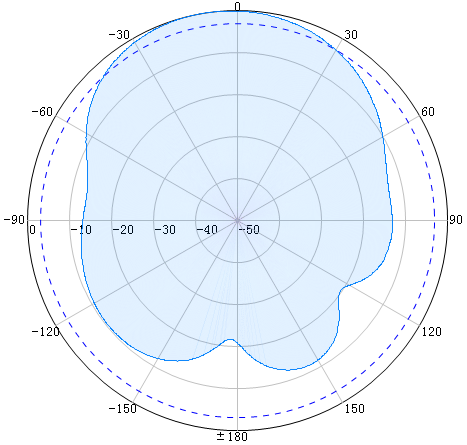

Vertical
	700-960MHz	1710-2690MHz

Application
