-150dBc 698-4000MHz Indoor Mimo Panel Antenna NF

698-4000MHz high gain 7/9 indoor Mimo panel Antenna with low PIM -150dBc

Item NO.:
MPA-740-79-NF-150M
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo

Inquiry now

Products Details

Product Name

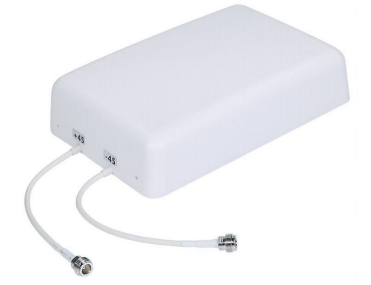

Low PIM -150dBc 698-4000MHz 7/9 dBi Indoor Mimo Panel Antenna with N female connector

Product Features

◆Compact, Low Weight

◆Contain Wide Band

◆High Reliability

◆Long Warranty Time

◆Simple Installation

Technical & Mechanical Specifications

Frequency range (MHz)	698-806	806-960	1710-2170	2200-2700	3300-4000
Polarization	±45°	±45°	±45°	±45°	±45°
Gain(dBi)	5±0.5	6±0.5	7±0.5	7.5±0.5	8.5±0.5
VSWR	≤1.8	≤1.8	≤1.8	≤1.8	≤1.8
Intermodulation IM3(dBc)	≤-153dBc(@2*33dBm)
Impedance(Ω)	50
Maximum input power(W)	50
Lightning protection	/

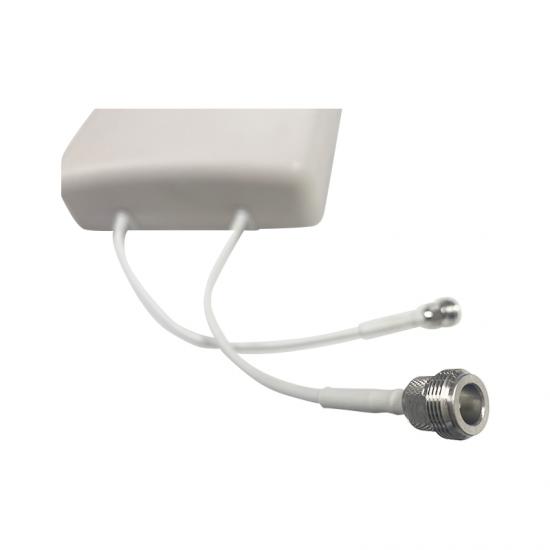

Connector	2*N-Female
Connector position	With cable
Net weight(kg)	0.9

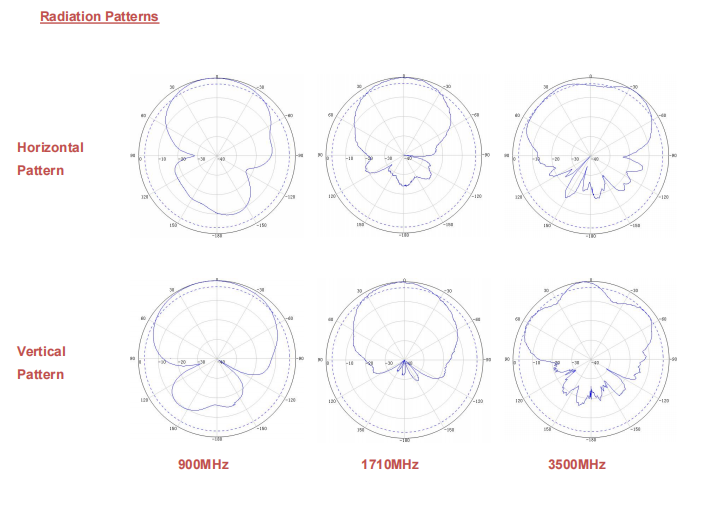

BW/Vertical	73°/70°/60°/60°/55°
BW/Horizontal	80°/80°/65°/60°/55°
Reflector material	Aluminum
Radome material	ABS
Radome color	White
Operating temperature(℃)	-40～55

low PIM mimo antenna
