Product Name

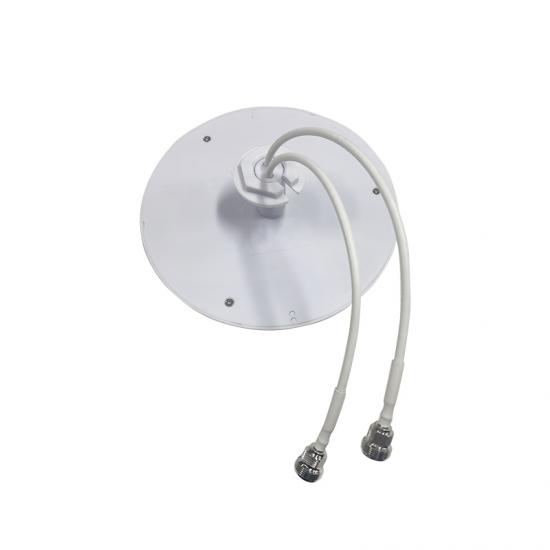

Low PIM -150dBc 698-4000MHz 2/4dBi Indoor Mimo Omni Antenna with N female connector
Product Features
◆Compact, Low Weight
◆Contain Wide Band
◆High Reliability
◆Long Warranty Time
◆Simple Installation
Technical & Mechanical Specifications
|
Frequency range (MHz) |
698-806 |
806-960 |
1710-2200 |
2200-2700 |
3300-4000 |
|
Polarization |
Linear*2
|
Linear*2 |
Linear*2 |
Linear*2 |
Linear*2 |
|
Gain(dBi) |
3±0.5
|
3.5±0.5 |
4.5±0.5 |
4.5±1.0 |
5.0±1.0 |
|
VSWR |
≤1.8 |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.8 |
|
Intermodulation IM3(dBc) |
≤-150dBc(@2*33dBm) |
||||
|
Impedance(Ω) |
50 |
||||
|
Maximum input power(W) |
50 |
||||
|
Lightning protection |
DC-Ground |
||||
|
Connector |
N-Female |
||||
|
Connector position |
With cable |
||||
|
Size(mm) |
φ220*36 |
||||
|
Net weight(kg) |
0.50 |
||||
|
BW/Vertical
|
90°/85°/45°/35°
|
||||
|
BW/Horizontal
|
360°
|
||||
|
Reflector material |
Aluminum |
||||
|
Radome material |
ABS |
||||
|
Radome color |
White |
||||
|
Operating temperature(℃) |
-40～55 |
||||
