Original manufacturer RF DC-6GHz 5W 10dB Attenuator With Nex10-male to Nex10-female

F DC-6GHz 5W 10dB Attenuator has good performance like Low VSWR,Low Attenuation Accuracy,it widely used for In-building Solutions.

Item NO.:
MA-5-6-10-XMF
Lead Time:
10-15days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Payment:
FOB,CIF,EXW
Color:
customized
MOQ:
10

Inquiry now

Products Details

Product Name

F DC-6GHz 5W 10dB Attenuator with Nex10 Type Connector

Product Features

◆ Wide Frequency Band DC-6GHz

◆ Low VSWR

◆Low Attenuation Accuracy

◆ Widely used for In-building Solutions

Technical & Mechanical Specifications

Model No.	MA-5-6-10-XMF
Freq(MHz)	DC-6GHz
VSWR	≤1.25
Power(W)	5 (average)@25℃
Attenuation(dB)	10
Accuracy(dB)	±0.8
Impedance	50 ohm
Connector	Nex10-male to Nex10-female
Color	Silver
Temp(deg)	-25~+65

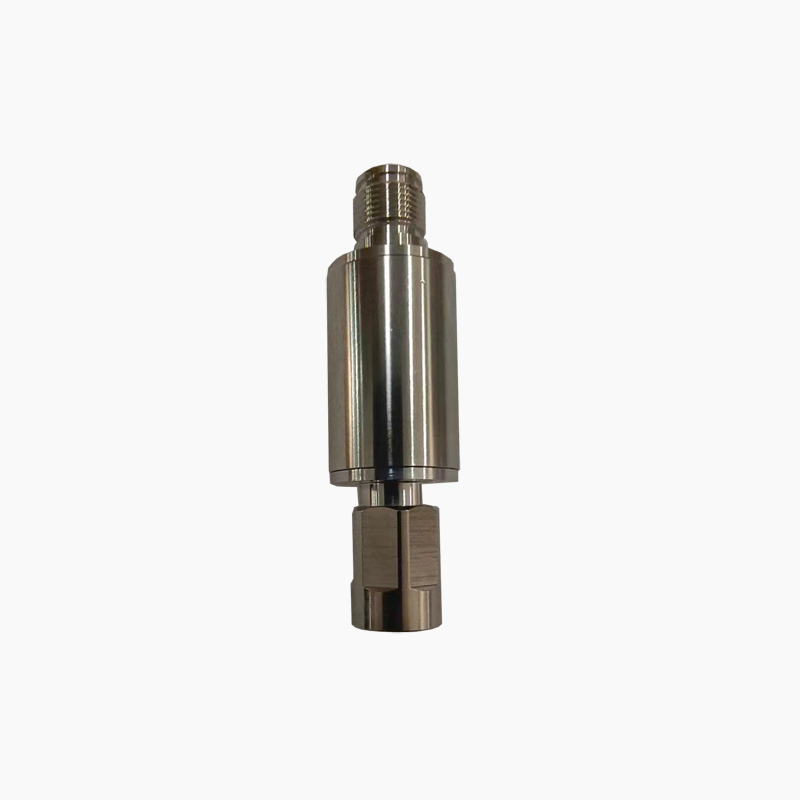

Product Pictures

Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.

Maniron has a huge fellowship that is composed of many high-level technologists.

We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also produce attenuator with Low PIM values,such as -150dBc,160dBc,161dBc etc.
