Newly 758-960MHz RF Bandpass Filter 30W RF Filter with High Attenuation

Band pass Filter which covers from frequency758-960MHz.It's in low vswr and insertion loss,high attenuation.

Item NO.:
MNL-BF-960-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Black or customized

Inquiry now

Products Details

Product Name

758-960MHz RF Bandpass Filter.

All parameters can be customized according to customers' requirements.

Product Feature

◆Compact, Low Weight bandpass filter

◆High Reliability

◆Simple Installation

Technical &Mechanical Specifications

Frequency	758 to 960MHz
VSWR	£1.3
Insertion loss	£1.5dB
Attenuation (min)	≥55 dB@ 1000-1600MHz@ 3200-4000MHz
Input power(Max.)	30W
Impedance	50 W
Appliactions	IP65
Connectors type	N female
Outer Dimension(mm)	1178145
Packing	1Pce in box

Product Pictures

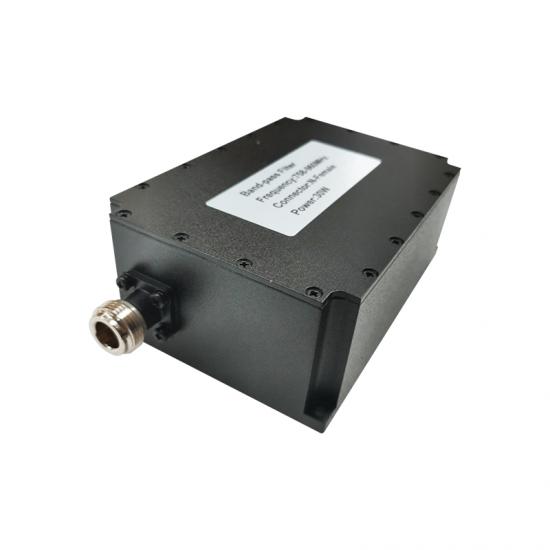

758 to 960MHz rf bandpass filter
