Product Name
Maniron 600-6000MHz MINO Outdoor Directional Pole Mount Panel Antennas
Product Features
◆ Wide Frequency Band 600-6000MHz
◆ Low VSWR
◆ High Gain
◆ Widely used for DAS
Technical &Mechanical Specifications
Electrical Specifications
Frequency Range(MHz)
600-698
617-698
698-960
1710-2700
3300-4000
4000-6000
Gain(dBi)
5.0
5.0
5.5
8.5
7.0
6.5
VSWR
≤2.5
≤2.5
≤2.0
≤1.8
≤2.0
≤2.0
Polarization
Horizontal + Vertical
Isolation(dB)
≥10
≥11
≥12
≥20
≥24
≥24
Front to Back Ratio(dB)
≥7
≥8
≥10
≥13
≥10
≥10
PIM, 3rd Order, 2x20W(dBc)
≤-140 | -150 | -153
Horizontal Beam width
100°
98°
90°
65°
45°
23°
Vertical Beam width
83°
80°
78°
60°
38°
25°
Input Impedance
50 Ω
Max. Input Power
50 W
Mechanical Specifications
Connector
2xN | 4.3-10 Female

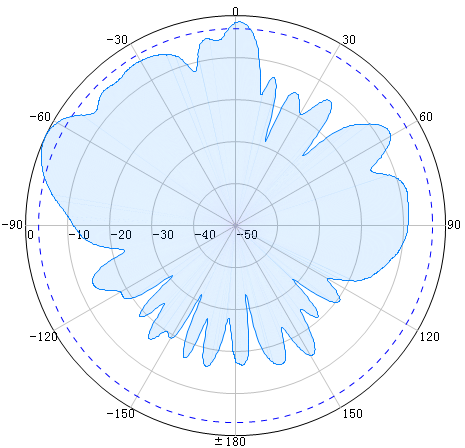

Horizontal
Vertical
700-960MHz
1710-2690MHz
3300-3950MHz
4900-5900MHz

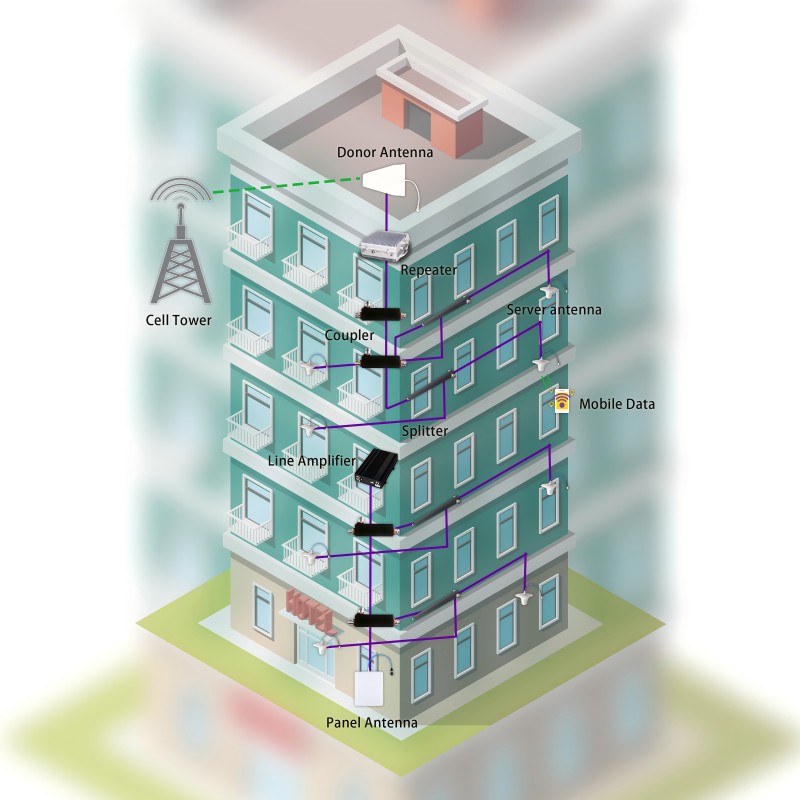

Application
