Maniron 698-4000MHz Low PIM -150dBc Panel Antenna

It's SISO Panel Antenna,coveres frequency from 698-4000MHz with Low PIM.It's easy for install.

Item NO.:
MPA-740-NF-150
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
White

Inquiry now

Products Details

Product Name

SISO Panel Antenna(698-4000MHz,-150dBc),which can be customized according to customers' requirements.

Product Features

◆Compact, Low Weight

◆Contain Wide Band 600-4000MHz,with NF connector

◆High Reliability

◆Long Warranty Time

◆Simple Installation

Technical & Mechanical Specifications

Model No.	MPA-740-NF-150
Frequency(MHz)	698-960	1710-2700	3300-4000
Gain (dBi)	3.5	4.0	4.5
VSWR	≤2.0	≤2.0	≤2.0
Polarization	Horizontal
Isolation(dB)	>15/20/22
Horizontal Beam width	360°
Vertical Beam width	90°	46°	38°
3rd PIM(dBc)	≤-150dBc@2*43dBm
Total Input Power(W)	50
Impedance (ohm)	50
Lightning Protection	DC Ground
Connector/Cable Length	N--Female
Radome material	White

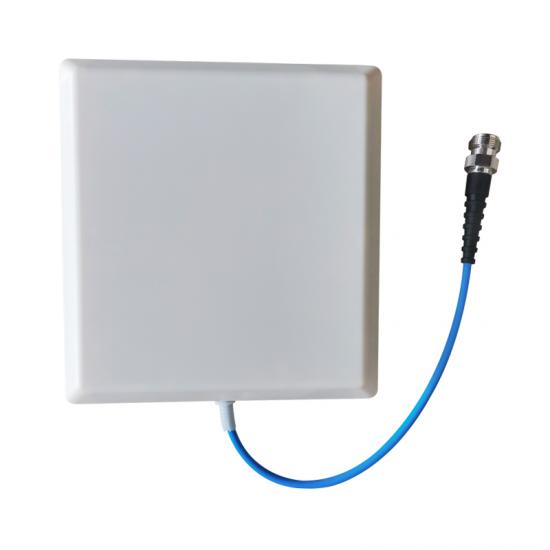

Product Image (For Reference Only)
