Product Name

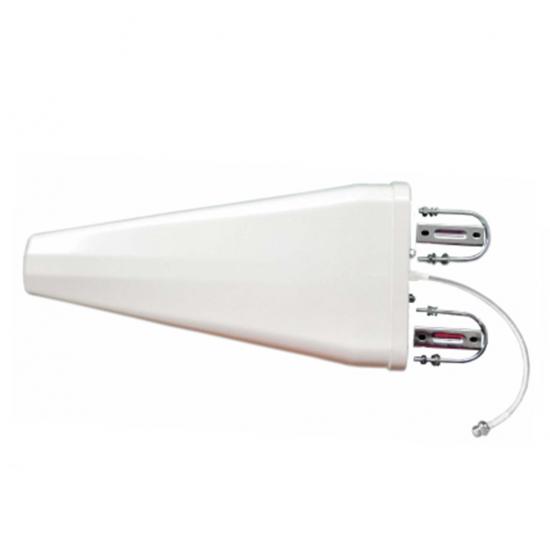

698-4000MHz Log Periodic Antennas
Product Features
◆ with Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ High Gain with 9.5/10/10.5dBi
◆ Widely used for In-building Solutions
Technical &Mechanical Specifications
Item No. |
YF-740-N-150 | |||||||||
Frequency Range |
MHz |
698-960 |
1427-2700 |
3300-4000 |
||||||
Gain |
dBi |
9.5±1.0 |
10.5±1.0 |
10.0±1.0 |
||||||
Polarization |
|
Vertical |
||||||||
Beam width |
Horizontal |
deg |
85±20 |
65±15 |
60±15 |
|||||
Vertical |
60±15 |
55±15 |
50±15 |
|||||||
VSWR |
|
≤1.8 |
||||||||
PIM, 3rd Order, 2 x 2 W, |
dBc |
-150 |
||||||||
Input Power, maximum |
watt |
50 |
||||||||
Impedance |
ohm |
50 |
||||||||
Dimensions, HxWxD |
mm |
440x210x65 |
||||||||
Weight, without Mounting Kit |
kg |
0.55 |
||||||||
Radome Material and Color |
|
ABS, White, RAL9003 |
||||||||
Mounting Kit |
|
φ35~φ50 |
||||||||
Connector Type and Location |
|
N Female |
||||||||
Operational Temperature |
oC |
-55 to +60 |
||||||||
|
||||||||||
|
|
