Product Name

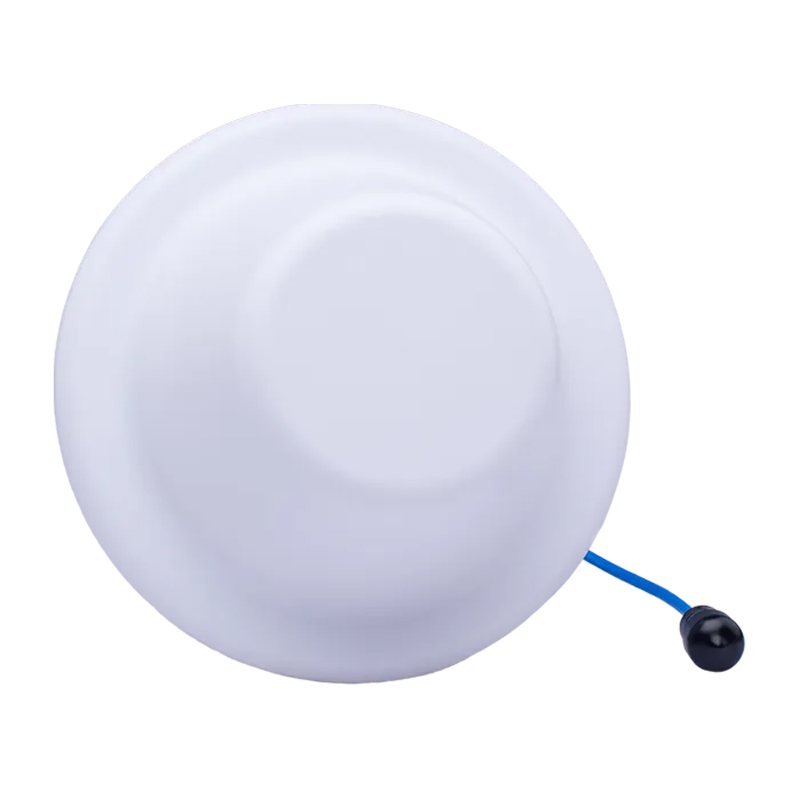

Maniron 698-2700MHz SISO Indoor Omni Dome Antenna
Product Features
◆ Wide Frequency Band 698-2700MHz
◆ Low VSWR
◆ High Gain
◆ Widely used for DAS
Technical &Mechanical Specifications
Electrical Specifications |
||
Frequency Range(MHz) |
698-960 |
1710-2700 |
Gain(dBi) |
2 |
5 |
VSWR |
≤1.8 |
≤1.5 |
Polarization |
Vertical |
|
PIM, 3rd Order, 2x20W(dBc) |
≤-140 | -150 | -153 |
|
Horizontal Beam width |
360° |
|
Vertical Beam width |
80° |
54° |
Input Impedance |
50 Ω |
|
Max. Input Power |
50 W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
||
Connector |
N | 4.3-10 Female |
|
Dimensions(mm) |
Ø186x85 |
|
Weight(kg) |
0.25 |
|
Radome Material |
ABS |
|
Operating Temperature |
-40°C to +65 °C |
|
Mounting |
Ceiling Mount |
![](/js/htmledit/kindeditor/attached/20241116/20241116171826_62477.jpg)
|
Horizontal
|
![]() |
![]() |
Vertical |
![]() |
![]() |
|
700-960MHz | 1710-2690MHz |
Application
