high gain fiberglass antenna with N-F connector

860-870MHz 5dBi Omni Directional Antenna Fiberglass Antenna

The fiberglass omni antenna covers frequency 800MHz from 860-870MHz,it's in low VSWR,high gain 5dBi with high quality for outside

Item NO.:
MNL-860870-OD-5
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
White

Inquiry now

Products Details

Product Name

Fiberglas Antenna(860-870MHz,5dBi,N-F),which can be customized according to customers' requirements.

Product Features

◆Compact, Low Weight

◆Contain Wide Band 800MHz

◆High Reliability

◆Long Warranty Time

◆Simple Installation

Technical & Mechanical Specifications

Model	MNL-860870-OD-5
Frequency (MHz)	860-870
Polarization	Vertical
Antenna Structure	1 Port
Gain(dBi)	5
VSWR	≤1.5：1
Impedance(Ω)	50
Power(W)	100
Lightning Protection	DC Grounding
Connector	N - Female
Dimensions	Φ20*900mm
Radome material	Fiberglass IN Grey
Wind Speed	37m/s
Operating temperature(℃)	-40～70

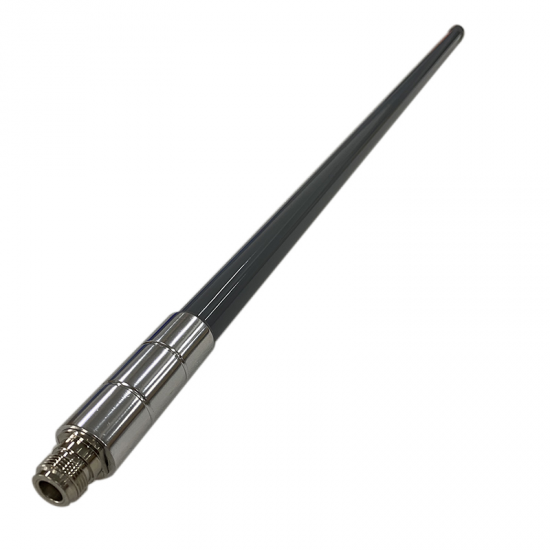

Product Image (For Reference Only)
