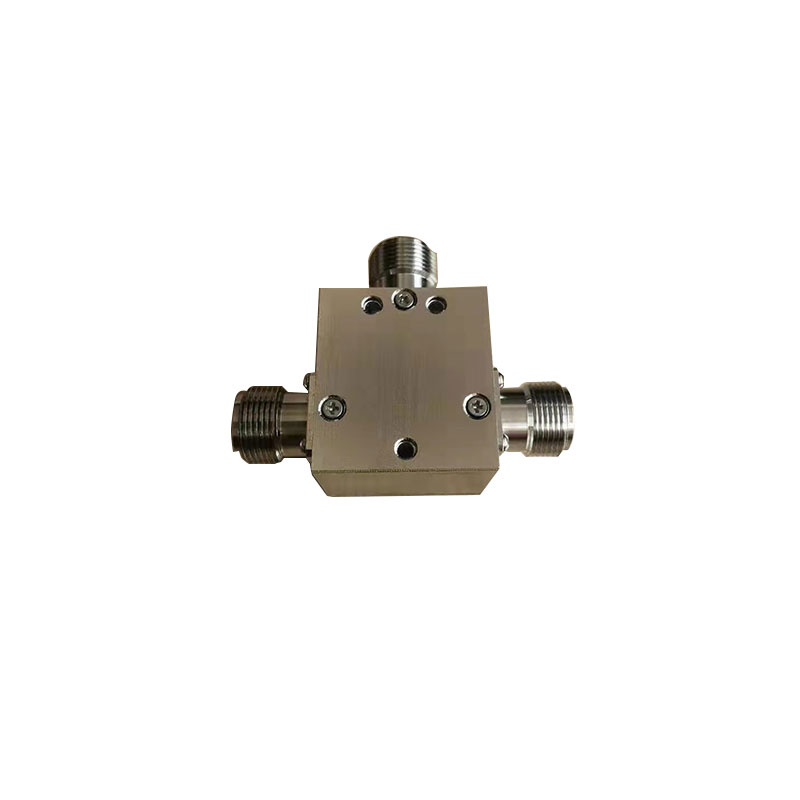

2-4GHz Coaxial Circulator with N-Female high isolation

2-4GHz Coaxial Circulator is high isolation and widely used for Military,Space and Commercial Applications

Item NO.:
MNC-24-NF-150
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou

Inquiry now

Products Details

Product Name

Coaxial Circulator(2-4GHz, N-Female)

Product Features

2-4GHz Coaxial Circulator is Wide Frequency Band 2000-4000MHz,Low VSWR,Low Insertion loss and High Isolation.2-4GHz RF Circulator is Widely used for Military,Space and Commercial Applications

Technical &Mechanical Specifications

Freq(MHz)	2000-4000
Insertion Loss(dB)	≤0.6
Isolatoion(dB)	≥16
Forward Power Rating(W)	150W /FWD
Impedance	50 ohm
Return Loss(dB)	≥15
Temp(deg)	0~+60
Application	Indoor
