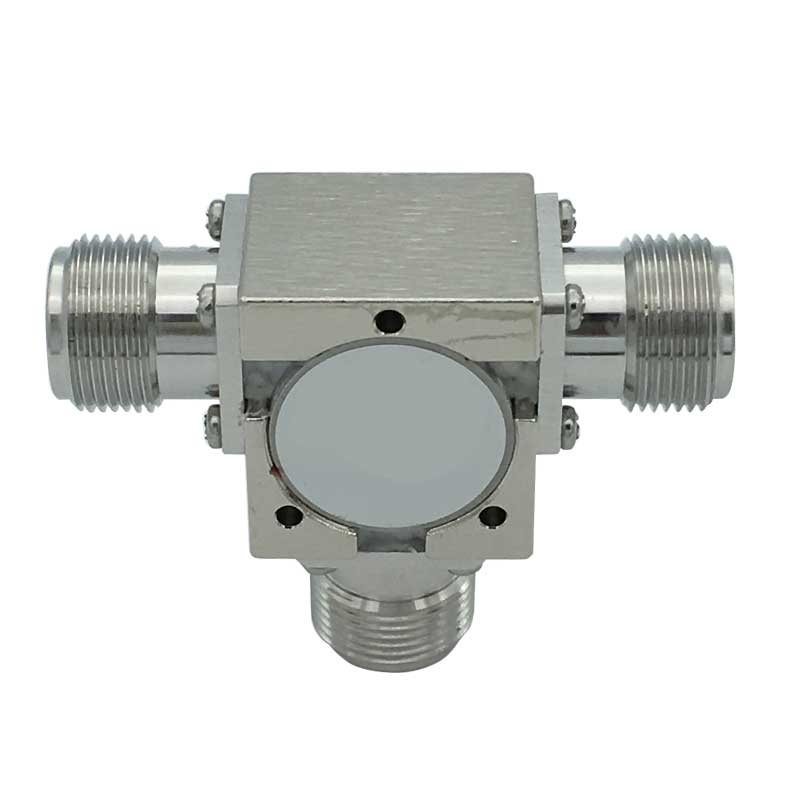

1400-1700MHz high isolation coaxial circulator with N-Female

1400-1700MHz Coaxial Circulator is high isolation and widely used for Military,Space and Commercial Applications

Item NO.:
MCC-1417-300-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou

Inquiry now

Products Details

Product Name

Coaxial Circulator(1400-1700MHz, N-Female)

Product Features

1.4-1.7GHz Coaxial Circulator is Wide Frequency Band 1400-1700MHz,Low VSWR,Low Insertion loss and High Isolation.1.4-1.7GHz RF Circulator is Widely used for Military,Space and Commercial Applications

Technical &Mechanical Specifications

Freq(MHz)	1400-1700
Insertion Loss(dB)	≤0.4
Isolatoion(dB)	≥20
Forward Power Rating(W)	300
Impedance	50 ohm
VSWR	≤1.25
Temp(deg)	-20~+60
Application	Indoor

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 1400-1700MHz high isolation coaxial circulator with N-Female
Im interested in your "1400-1700MHz high isolation coaxial circulator with N-Female", please inform me more detailed product information and price. Thankyou!
