 / 10W DC-4GHz Attenuator With 4.3-10 M/F Connector

0-4000MHz Attenuator
0-4000MHz Attenuator 0-4000MHz Attenuator 0-4000MHz Attenuator 0-4000MHz Attenuator

10W DC-4GHz Attenuator With 4.3-10 M/F Connector

0-4000Hz 10W RF Attenuator with 4.3-10 M/F connector for IBS BTS

  • Item NO.:

    MLA-10W-4GxxdB-4MF

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
Inquiry now
  • Products Details

Product Name:

10w DC-4000MHz RF Attenuator


Technical &Mechanical Specifications:


Model No.
MLA-10W-4GxxdB-4MF
Freq(MHz) DC-4GHz
Attenuation(dB)
1-9 10 15 20 30 40
Accuracy(dB)
±0.6
±0.6
±0.8
±0.8
±1.0
±1.0
VSWR
≤1.25
Average Power(W)
10
Impedance
50 ohm
Connector
4.3-10 M/F
Color
Black
Ambient Temp(deg)
-35~+75
Relative Humidity
5%-95%

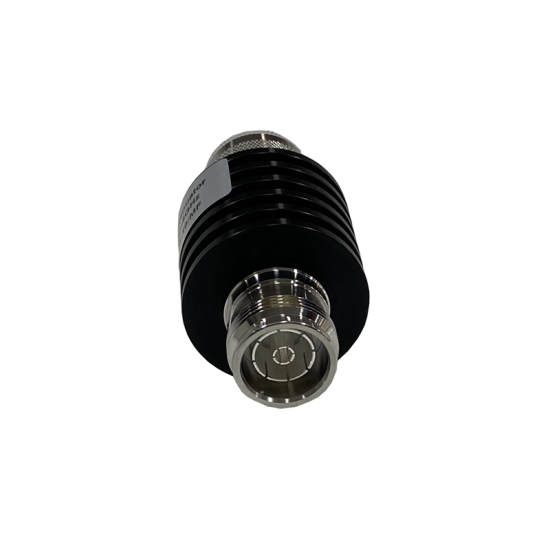

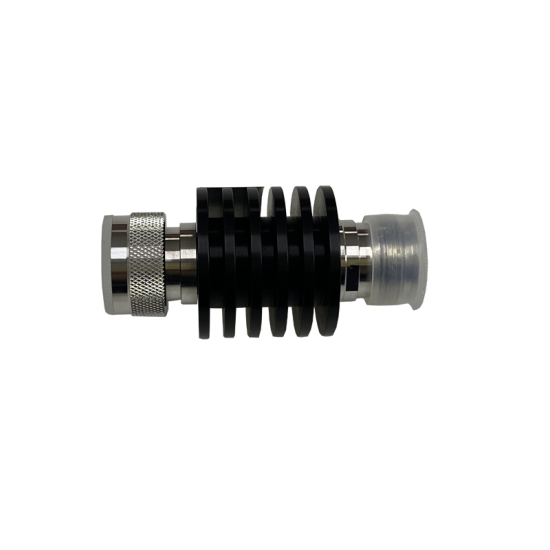

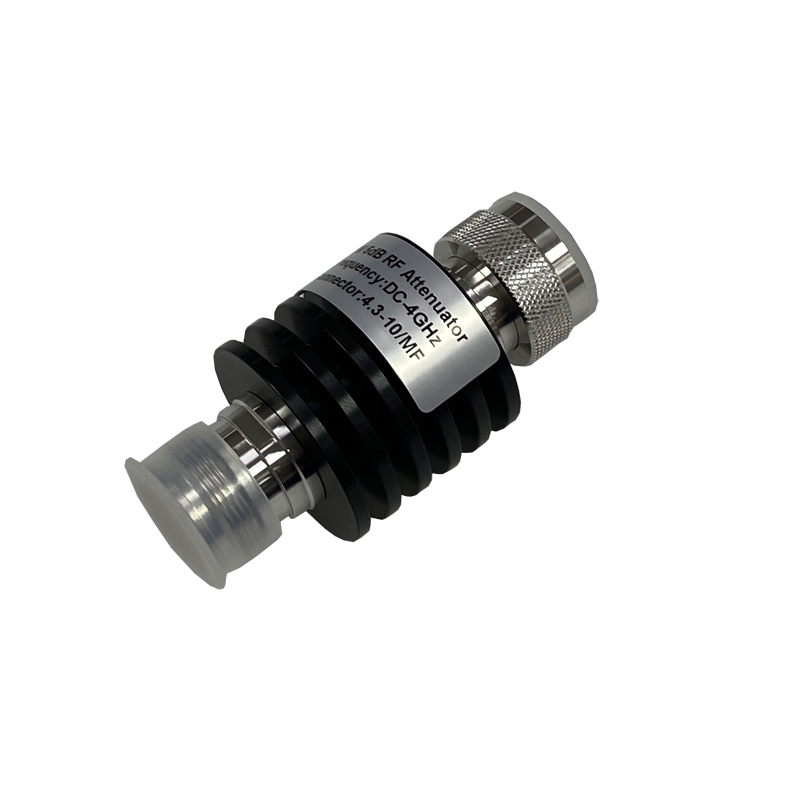

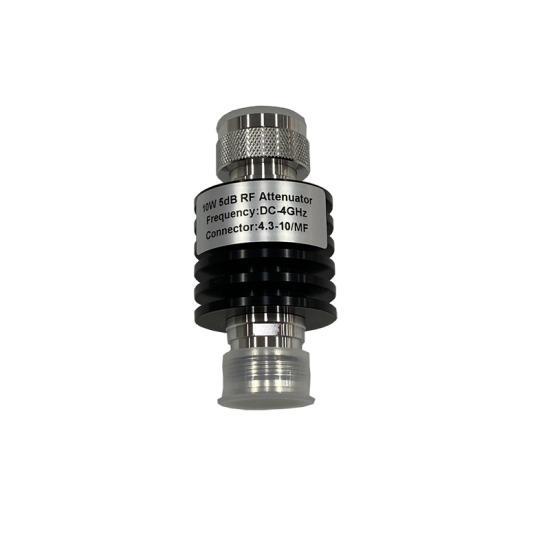

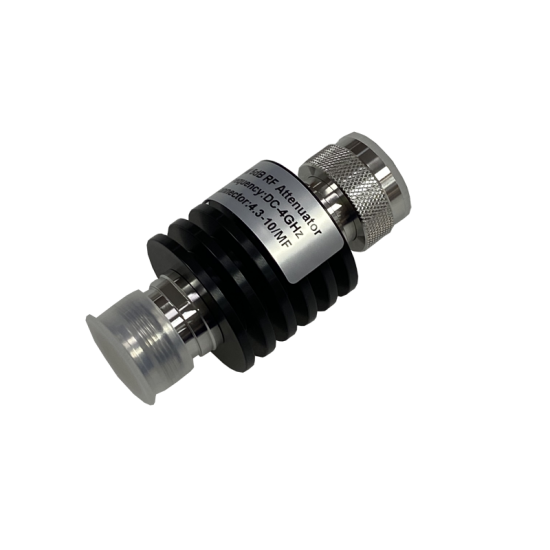

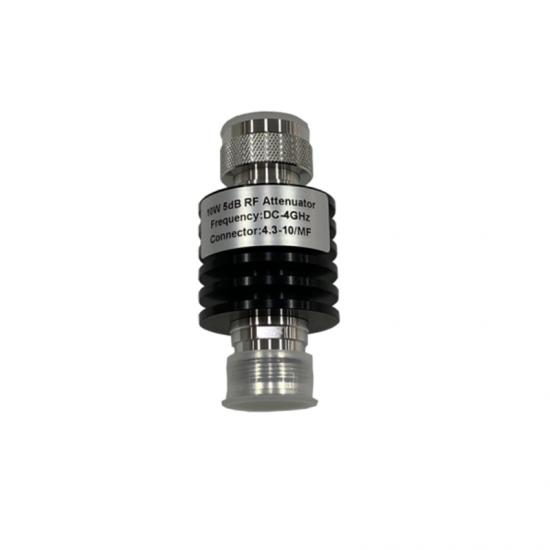

Product picture




OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
