RF 698-3800MHz 4 In 4 Out Hybrid Combiner Low PIM

4 in 4 out Hybrid Coupler/Combiner with 4.3-10-male Connector which covers frequency from 698 to 3800MHz

Item NO.:
MHC-738-44-4F-160
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
Black

Inquiry now

Products Details

Product Name

4*4 Hybrid Coupler (698-3800MHz, 300W,4.3-10F,-160dBc, IP65)

Product Features

◆ Wide Frequency Band 698-3800MHz

◆ 2G/3G/4G/LTE/5G Coverage

◆ Low Passive Inter-modulation

◆ Low VSWR & Insertion Loss

◆ High Isolation, Indoor & Outdoor, IP66

◆ Widely used for In-building Solutions

RF Hybrid Coupler Combiner covers frequency from 698-3800MHz,which is used for IBS DAS,and in hot sale in AU Market.It can be customized according to clients' requirements.

Technical &Mechanical Specifications

Freq(MHz)	698-3800
Coupling(dB	6.1
Coupling Accuracy(dB)	±1.4
Port Isolation(dB)	≥23
VSWR	≤1.25 (690-2700MHz); ≤1.3 (2700-3800MHz)
3rd PIM(dBc)	≤-160dBc@2*43dBm(PIM tested at 900, 1800, 2600MHz)
Average Power(W)	300
Impedance	50 ohm
Connector	4.3-10 Female
Color	Light Grey or Black

Pictures

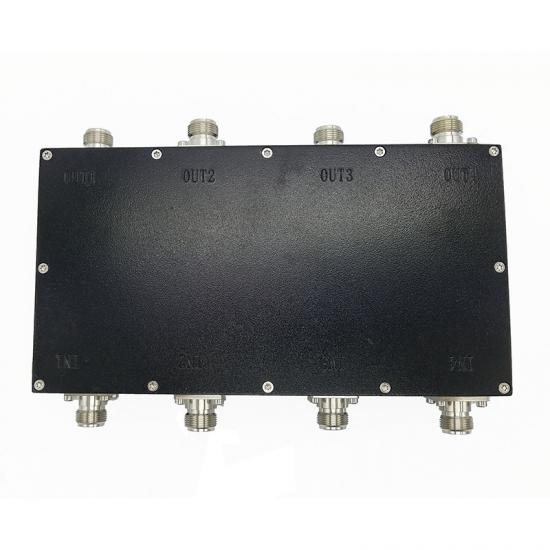

698-3800MHz RF Hyrbrid Combiner
