Product Name
Maniron 600-6000MHz SISO Indoor Directional Wall Mount Panel Antennas
Product Features
◆ Wide Frequency Band 600-6000MHz
◆ Low VSWR
◆ High Gain
◆ Widely used for DAS
Technical &Mechanical Specifications
|
Electrical Specifications |
||||||
|
Frequency Range(MHz) |
600-698 |
617-698 |
698-960 |
1710-2700 |
3300-4000 |
4000-6000 |
|
Gain(dBi) |
5.0 |
5.0 |
6.5 |
9.0 |
7.0 |
8.5 |
|
VSWR |
≤2.3 |
≤2.3 |
≤2.0 |
≤1.8 |
≤1.8 |
≤2.0 |
|
Polarization |
Vertical |
|||||
|
PIM, 3rd Order, 2x20W(dBc) |
≤-140 | -150 | -153 |
|||||
|
Front to Back Ratio(dB), dB |
≥8 |
≥9 |
≥10 |
≥15 |
≥11 |
≥8.5 |
|
Horizontal Beam width |
95° |
100° |
85° |
65° |
50° |
14° |
|
Vertical Beam width |
95° |
90° |
82° |
60° |
45° |
16° |
|
Input Impedance |
50 Ω |
|||||
|
Max. Input Power |
50 W |
|||||
|
Mechanical Specifications |
||||||
|
Connector |
N | 4.3-10 Female |
|||||
|
Dimensions(mm) |
180×158×60 |
|||||
|
Weight(kg) |
0.4 |
|||||
|
Radome Material |
ABS |
|||||
|
Operating Temperature |
-40°C to +65 °C |
|||||
|
Mounting |
Wall Mount | Pole Mount |
|||||
|

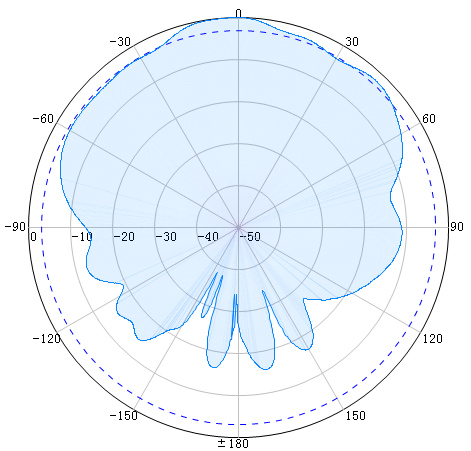

Horizontal |
 |
 |
 |
 |
||||
|
Vertical |
 |
 |
 |
 |
||||
|
|
|
|
|
|
Application
