Maniron 800MHz B28 27dBm Single Band Selective Repeater 2G/3G/4G Signal Booster BTS Amplifier

Repeater with low power, high gain, light weight and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
  • Item NO.:

    M20S-800-N
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Black
  • Products Details

Product Name

Maniron 800MHz B28 27dBm Single Band Selective Repeater 2G/3G/4G Signal Booster BTS Amplifier


Product Features

◆ Low Power
◆ High Gain

◆ Light Weight


Technical &Mechanical Specifications

Parameter Data

Uplink

Downlink

Frequency Range

703-748MHz

758-803MHz

Output Power

23±2 dBm

27±2 dBm

Gain

70±2 dB

75±2 dB

Ripple in band

≤6~15dB

Function

Auto Gain Control/Auto Shut Off/MGC

Noise Figure@max. gain

≤6 dB

Spurious emission

9KHz~1GHz

≤-36 dBm

≤-36 dBm



1GHz~12.75GHz

≤-30 dBm

≤-30 dBm

MTBF

>100,000 hours

RF Connector

N-Female

Size

310*270*60mm

Weight

<5kg

Operating Temperature

-10℃~+55℃

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
BDA
Public safety BDA RF Repeater
Public Safety Digital Dual-Band Off-Air Repeater
 Low White noise Anti Drone Power Amplifier
Anti UAV RF Signal Modules 459MHz-461MHz Low White noise Anti Drone Power Amplifier RF Modules with SMA-Female connector
Repeater with low noice design, low interference, low power consumption design and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
Four band repeater
Maniron 800 1800 2100 2600 mhz quad band network cell phone mobile signal booster
Repeater with low noice design, low interference, low power consumption design and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
UHF Repeater
Tetra 390M 10dbm Off-air Channel Selective Fiber Optic Repeater
+10dbm TETRA,UHF, PMR, DMR Bi-DIrectional Amplifier (BDA) 400 MHz Walkie Talkie Power Amplifier Booster/Repeater
Five band repeater
Maniron 2G 3G 4G FCC certified Signal Booster Multi-band Cell Phone Signal Amplifier
Repeater with low power consumption, low interference and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
410-414&420-424MHz UHF Digital Fiber Optic Repeater
410-414&420-424MHz UHF Digital Fiber Optic Repeater
This UHF fiber repeater supports 420-424 MHz downlink and 410-414 MHz uplink, making it ideal for public safety, private networks, industrial communication, and mission-critical wireless systems.

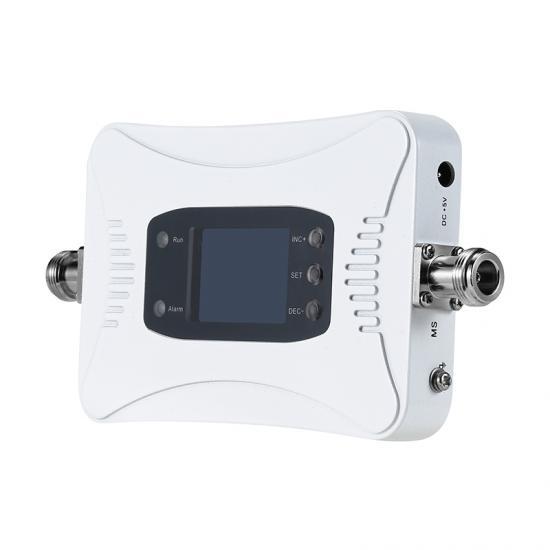

Maniron 703-748&758-803MHz Single Band Cellular Signal Booster
Maniron 703-748&758-803MHz Single Band Cellular Signal Booster
Specifically engineered for small areas such as apartments, offices, or retail shops, the cellular repeater significantly enhances 4G/5G signal strength, ensuring crystal-clear voice calls and high-speed, seamless data connectivity.

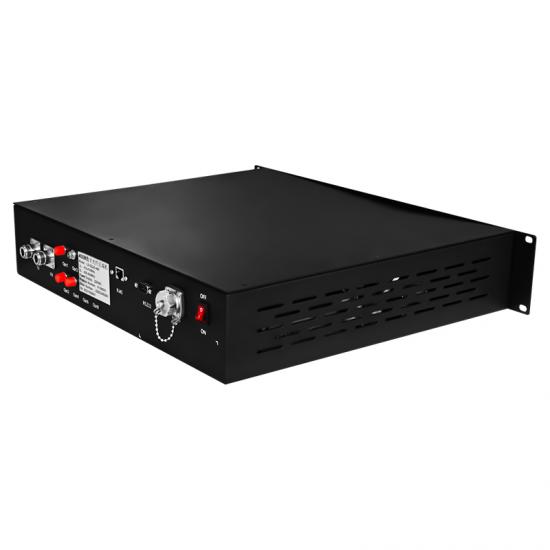

Maniron 410-424MHz UHF Digital Fiber Base Station
Maniron 410-424MHz UHF Digital Fiber Base Station
The 410-424MHz UHF Fiber Remote Unit (Near-End Unit) is a professional RF transmission module designed for fiber-based Distributed Antenna Systems (DAS) and long-distance wireless signal extension.
Triple Band Digital Repeater
Maniron Low Noise 900/1800/2100MHz 2G 3G 4G Triple Band Digital Repeater
Repeater with high performance, low maintenance, low interference and easy to install. Increase mobile signal coverage, by boosting signal strength(voice&data).
800&1800MHz Dual Band Signal Amplifier
Maniron 800&1800MHz Dual Band Signal Amplifier
Repeater with low power, high gain, light weight and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
800Mhz single band repeater
Maniron LTE 800MHz band20 Signal Booster Mobile Phone Repeater
Repeater with low power, high gain, light weight and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
850Mhz signal repeater
Maniron 850MHz Signal band Signal Repeater Mobile Booster
Repeater with low power, high gain, light weight and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.

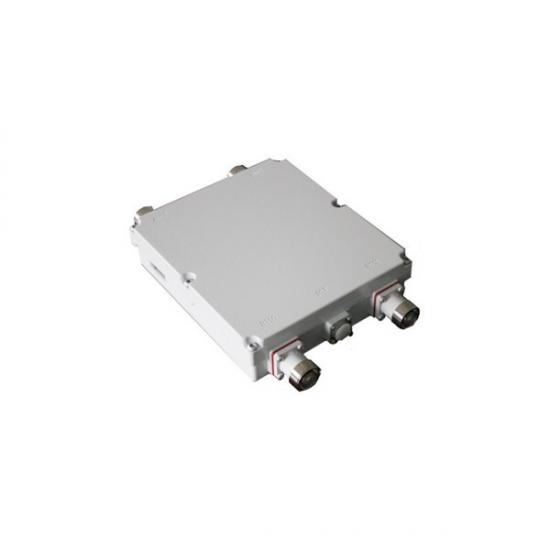

2100Mhz Tower Amplifier
Maniron Tower Amplifier RX:1920-1980MHz TX:2110-2170MHz
Maniron 2T2R Tower Amplifier RX:1920-1980MHz TX:2110-2170MHz with 4.3-10 Female Connector AISG Mode
DMR Repeater, Digital Repeater, Two Way Radio Base Station
MANIRON M-3500 DMR Digital Repeater, 1U Rack-Mount Analog & Digital Dual Mode Base Station
MANIRON M-3500 is a 1U rack-mount DMR repeater with analog/digital dual modes. TDMA dual time slot supports two calls simultaneously. Optional IP interconnection enables wide-area communication, and RJ45 port allows remote diagnosis for professional radio systems.

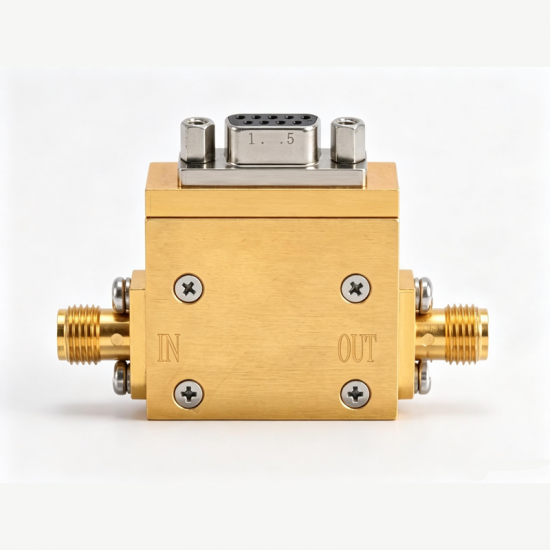

 Low Noise Amplifier
Cryogenic Low Noise Amplifier LNA 4-12GHz, 35dB Gain 6K Noise Temperature SMA-K for 4K Cryogenic Environment
This compact amplifier adopts SMA‑K microwave interfaces and a 9‑pin micro‑rectangular power connector. Its small physical dimension of 25×24×9 mm makes it well‑suited for integration into cryogenic systems. Widely applied in radio astronomy, quantum computing, qubit readout and deep‑space receiving front‑ends.

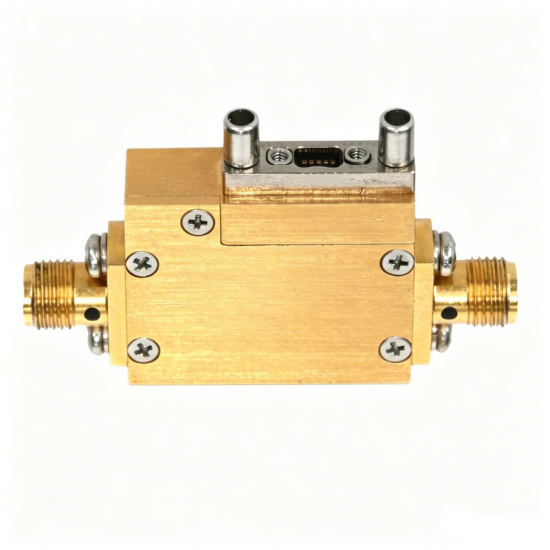

 Low Noise Amplifier
Cryogenic Low Noise Amplifier 4-8GHz 40dB Gain 3K Noise Temperature SMA-K Interface LNA for Cryo Measurement
4-8GHz wide working frequency band, meets microwave cryogenic test requirements Ultra low noise temperature 3K, effectively reduce signal noise under cryogenic environment Stable high gain of 40dB, realize high-fidelity weak signal amplification
signal repeater
764-806MHz Bi-directional Repeater Amplifier
700MHz LTE B20 Bidirectional Repeater adopts N-Female I/O ports with 50 ohm impedance. Wide AC power input AC90~264V. Built-in LED alarm indicator for power and ALC status. Ideal for LTE Band20 cellular signal coverage projects.
Base station Antenna
1710-2690MHz 65° 18dBi 2-Pol Integrated RCU RET Sector BTS Base Station Antenna
Integrated RCU (Remote Control Unit) Antenna has excellent PIM performance and high gain with  2x4.3/10 Female connector,coverage GSM/CDMA/PCS/3G/4G/5G
Band-pass Filter
New Product Explosion 1805-1880MHz Low Band-pass Filter with N female connector for IBS DAS BTS
Band-pass Filter which covers from frequency   1805-1880MHz

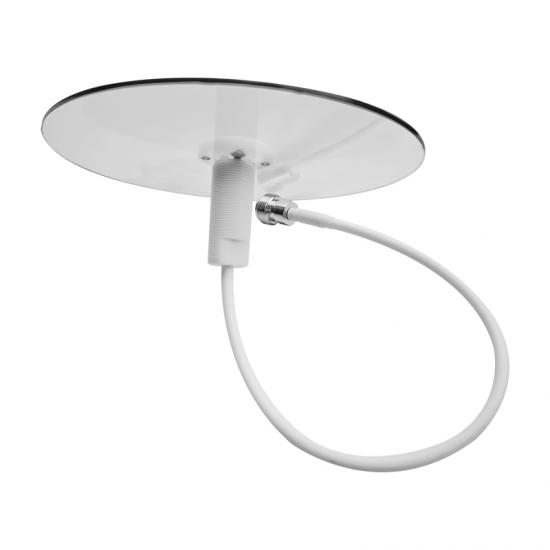

Omni Ceiling Mount Antennas
Maniron 600-4000MHz 4-Port Indoor Omni Slim Ceiling Mount Antennas
600-4000MHz 4-Port Indoor Omni Slim Ceiling Mount Antennas is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely used for DAS.
50W RF Bandpass Filter
50W RF Bandpass Filter 920.1 to 922.8MHz
50W RF Bandpass Filter is small in size, light in weight, excellent in performance and reliable in reliability.

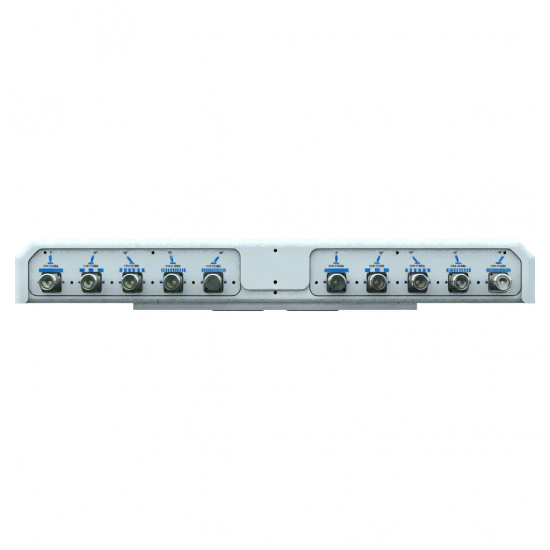

Base station Antenna
12-Port 694~2690MHz 65° 18dBi 2°~14° Integrated RCU RET Sector BTS Base Station Antenna
Integrated RCU (Remote Control Unit) Antenna has excellent PIM performance and high gain with  12x4.3/10 Female connector,coverage GSM/CDMA/PCS/3G/4G/5G.
 1.175-1.325GHz 100W Circulator
Low VSWR 1.175-1.325GHz 100W Circulator with SMA-F
Coaxial circulator covers frequency band UHF 430-470MHz,which is in low insertion loss and high isolation.

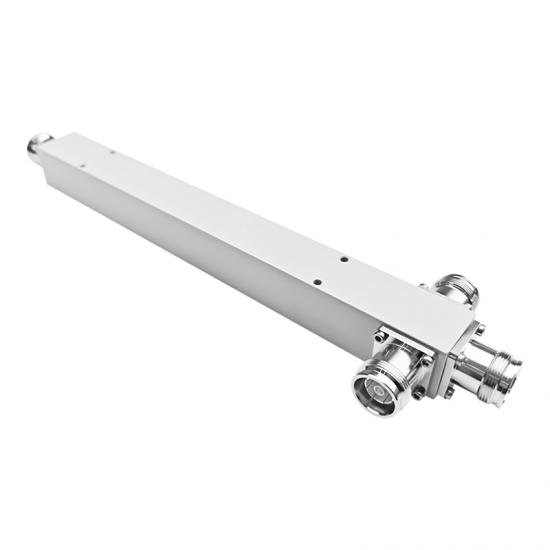

Public Safety Power Splitter
Public Safety 3 way Power Splitter 137-960MHz,50W,N Connector,IP65
137-960MHz 3 way Wilkinson Power Divider/Splitter with low insertion loss,low VSWR and widely used for IBS BTS DAS

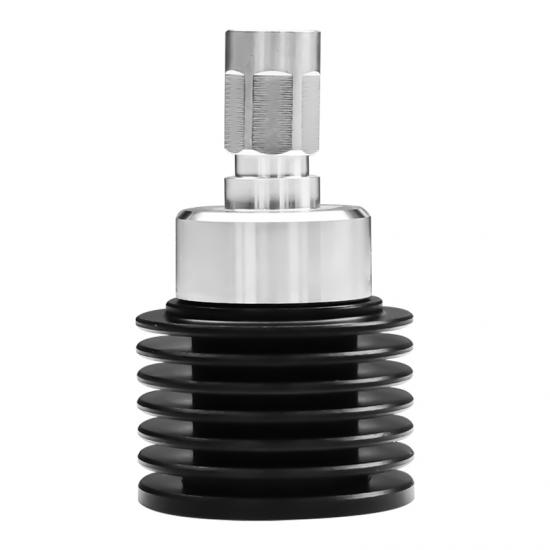

DC-3GHz 100W N-Male  Dummy Load
DC-3GHz 100W N-Male Termination load Square
100W N-Male RF Dummy Load is a high power with wide frequency band DC-3GHz.
700-6000MHz 3dB Hybrid Coupler 2x2 hybrid coupler
700-6000MHz 3dB Hybrid Coupler Combiner -160dBc Low PIM
3dB Hybrid Coupler/2 in 2 out Hybrid Coupler with 4.3-10-Female Connector which covers frequency from 700 to 6000MHz
Magnetic Base 4G Antenna Car Antenna
4G LTE Magnetic Mount Antenna N Female
This 4G LTE Magnetic Mount Antenna is designed for reliable cellular signal reception, covering the full 800-960MHz / 1710-2500MHz frequency bands. It is ideal for vehicle-mounted systems, routers, modems, and signal boosters that require stable 4G connectivity.
4Way Wilkinson Divider
698-2700MHz 4Way Wilkinson Power Divider SMAF
RF Power Splitters/Dividers/Combiners. 2-Way, 3-way, 4-way, 6-way, 8-way and up to 24-way models for 50 Ohm
380- 512MHz Surge Protector
Coaxial uhf 380- 512MHz rf Surge Protector
Coaxial uhf 380- 512MHz rf surge protector is designed for antenna coaxial device and receive/transmit system not to be spoiled by lightning over-voltage, induced over-voltage and static discharge
low pim 3 in 3 out hybrid coupler with 4.3-10 type
Maniron 600-6000MHz -161dBc 3x3 Hybrid Combiner
600-6000MHz 3x3 Hybrid Coupler/Combiner with 4.3/10-female connector,low PIM-161dBc@2*43dBm
Octa Band Combiner
RF Parts Manufacturer Low PIM Octa Band Combiner -150dBc 700-3800MHz
Wide Frequency Band 703-803/885-960/1710-1880/1920-2170/3300-3800/3300-3800/2300-2400/2500-2690MHz 8 Octa Band Combiner widely used for In-building Solutions
Magnet Car Antenna
High Gain 698-4000MHz Magnet Car Antenna
The 698-4000MHz mobile antenna is designed to enhance signal strength, making it an ideal choice for 5G applications and mobile communication systems. This antenna is perfect for boosting connectivity in both urban and rural areas, ensuring reliable performance across a wide frequency range.

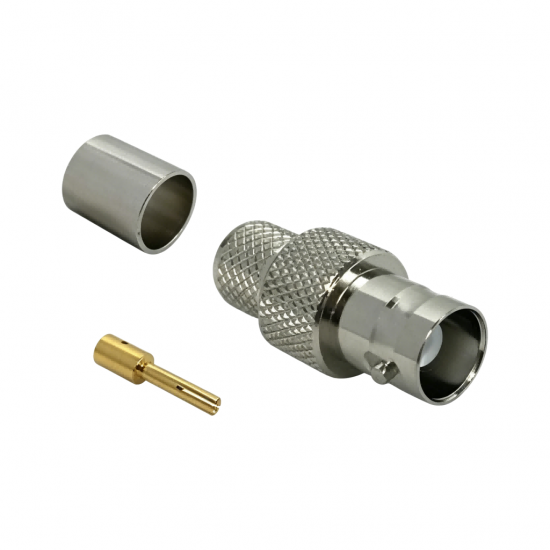

RF Connector
DC-4GHz Crimp RF Connector 50Ω Low VSWR Gold Contact for LMR400 Cable
This is a BNC Female Crimp Connector, specifically designed for crimping onto LMR400 coaxial cables. It is widely used in RF communication systems, test equipment, broadcast systems, and industrial applications that require reliable 50Ω signal transmission up to 4GHz.
136-174MHz VHF directional coupler
136-174MHz VHF 6DB directional coupler with N female
VHF directional coupler covers frequency from 136 to 174MHz  with 6dB/10dB/15dB/20dB/30dB/40dB coupling,widely used for IBS DAS
low insertion loss rf bandpass filter
Maniron 821-869MHz RF Bandpass Filter Cavity Filter with N Connector
The Filter covers frequency from 821-869MHz which is in high rejection 70dB with N Male/Female Connector
Directional  Coupler (2-9GHz, 5W, SMA-Female Connector)
Directional Coupler (2-9GHz, 5W, SMA-Female Connector)
10dB wide frequency band 2-9GHz directional coupler with 5W,SMA-Female Connector
Base station Antenna
790~960MHz 65°15dBi 0°~14° 2-Pol Integrated RCU RET Sector BTS Base Station Antenna
Integrated RCU (Remote Control Unit) Antenna has excellent PIM performance and high gain with  2x4.3/10 Female connector,coverage GSM/CDMA/PCS/3G/4G/5G

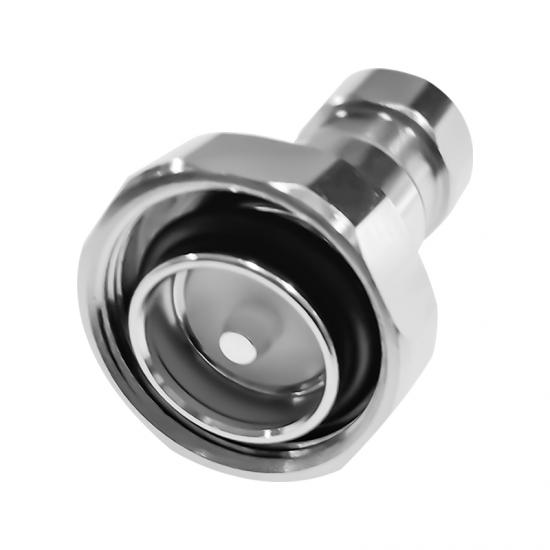

7/16 DIN-Male RF Connector
7/16 DIN-Male RF coaxial Connector for 7/8" cable
DIN-Male RF Connector is Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects.
Low PIM Antenna 600-6000MHz
Maniron 600-6000MHz Low PIM Indoor MIMO Panel Antenna
MIMO Outdoor Directional Panel Antennas is used in the wide wave band. With wide frequency, high gain and low PIM, it can be widely used for DAS.
rf adaptor
rf adaptor 90 degree 7/16 male to female
RF Adaptor DIN male to DIN female right angled has Low PIM(-150/-155/-160/-161dBc)and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.Maniron manufacture straight standard, right angle, bulkhead, T and any other variety of RF adapter
Cavity duplexer
RF cavity duplexer 902-915MHz 920-928MHz for telecommunication
This bandpass duplexer covers frequency band 902-915MHz 920-928MHz with Low VSWR and high rejection.
 6Way Wilkinson Power Divider
698-2700MHz 6Way Wilkinson Power Divider NF Connector
Maniron 6 way power divider, power combiners are available with Type N, SMA, TNC, BNC, and QMA connector options. All models are optimized for broadband operation covering the frequency ranges from 350 to 1000 MHz, 698 to 2700 MHz, 1 to 2 GHz, and 2.4 to 6 GHz with good performance. These Wilkinson hybrid, 6 way, power divider, power combiners are reciprocal units that divide and combine signals with equal facility.
 Low Noise Amplifier
Cryogenic Low Noise Amplifier 4-8GHz 40dB Gain 3K Noise Temperature SMA-K Interface LNA for Cryo Measurement
4-8GHz wide working frequency band, meets microwave cryogenic test requirements Ultra low noise temperature 3K, effectively reduce signal noise under cryogenic environment Stable high gain of 40dB, realize high-fidelity weak signal amplification
 rf cavity Duplexer
Custom Designs 380-400/410-470MHz RF Cavity Duplexer Combiner N Female Connector
Low PIM RF Dual Band Duplexer covers frequency 380-400MHz 410-470MHz. It is easy for installation.

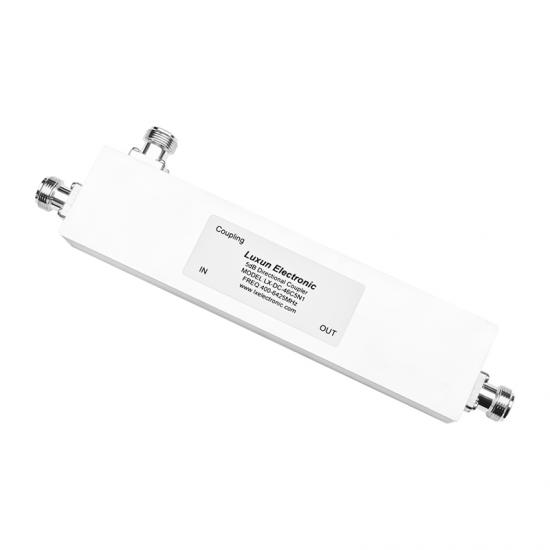

400-6425MHz 20W Directional Coupler N Female Low VSWR for DAS & Wireless Systems
400-6425MHz 20W Directional Coupler N Female Low VSWR for DAS & Wireless Systems
High-performance 20W directional coupler covering 400-6425MHz with low insertion loss, low VSWR, and N-female connectors, ideal for DAS, 4G/5G, and RF signal distribution systems.

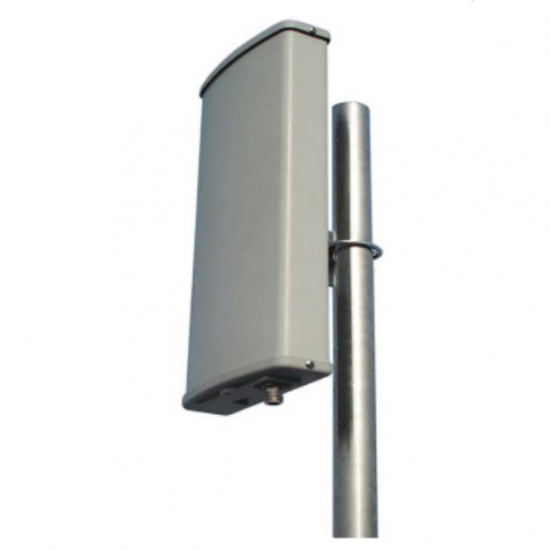

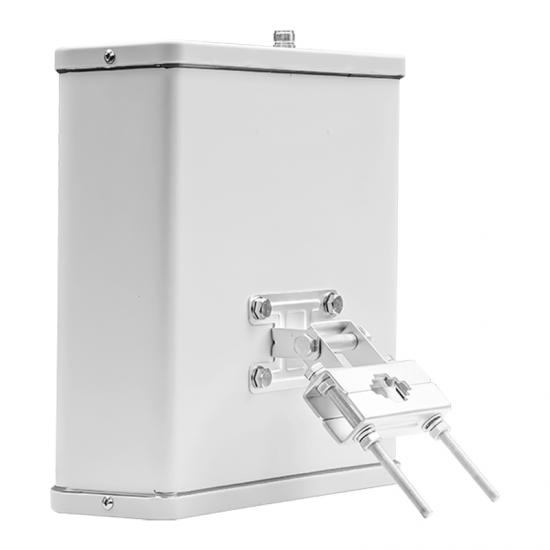

Wall Mount Panel Antennas
Maniron 380-4000MHz Directional Wall Mount Panel Antennas
380-4000MHz 7dBi Directional Wall Mount Panel Antennas is used in the wide wave band. With wide frequency, high gain and low PIM, it widely used for DAS.
2 way inline power splitter
Low pim 2 way inline power splitter 698-4000MHz with N female connector
Inline power splitter has wide frequency band 698-4000MHz with N female connector low pim performance
Yagi Antenna
138-800MHz 10dBi Yagi Antenna for DAS
The MYA-180-10-NF-100 is a high-performance Yagi antenna covering 138-800MHz. With 10dBi gain and 100W power handling, it ensures strong directional signal transmission. Designed with an N-Female connector, it is ideal for VHF/UHF communication, public safety networks, and RF applications.
RF Diplexer Combiner SMAF
2.4-2.5/5.1-7.2GHz RF bandpass Diplexer Combiner SMAF
This RF bandpass Diplexer Combiner covers frequency band 2.4-2.5/5.1-7.2GHz with Low VSWR and high rejection.

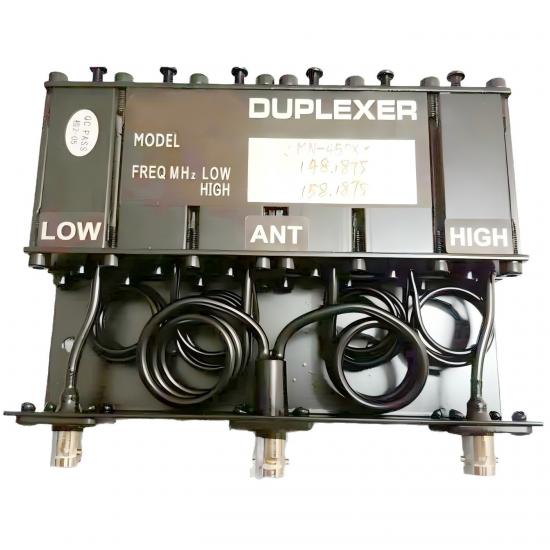

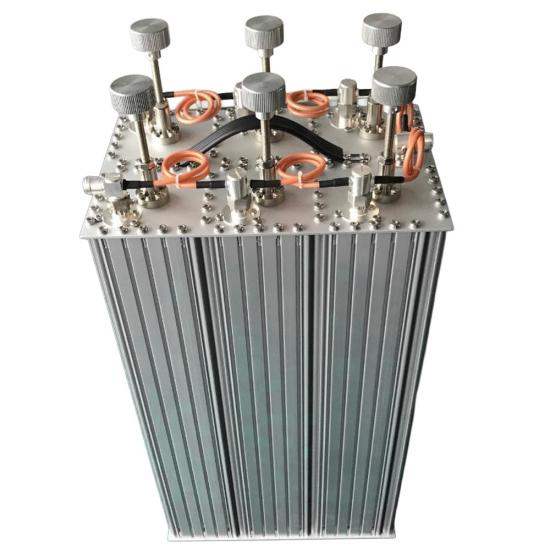

VHF Duplexer
