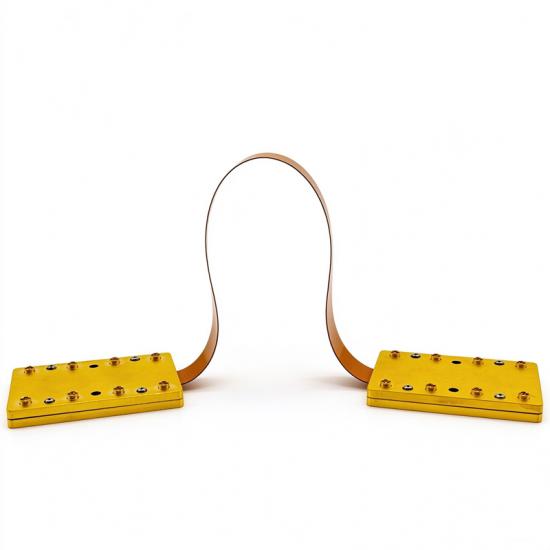

Cryogenic Flexible RF Cable DC~18GHz, 10mK~5K Ultra Low Temp Coaxial Jumper for Quantum Computing Radio Astronomy

Ultra Low Temperature Flexible Cryogenic Cable DC-18GHz SMA/SMP Connector Cryo RF Jumper Wire

Item NO.:
MCFC8-C1_18A
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Gold

Inquiry now

Products Details

Product Features

◆ Low VSWR

◆ Low Insertion Loss

◆ Wide band

◆ Widely used for In-building Solutions application.

Technical &Mechanical Specifications

Item	Specification
RF Bandwidth	DC～18GHz
Insertion loss	≤7dB/m @ DC～6GHz；≤14dB/m @ 6GHz～18GHz
VSWR	≤1.5 @ DC～12GHz；≤1.9 @ 12GHz～18GHz
Isolation	≥50dB
Thermal load	L=0.2m; (△T:4K‑50K)
Power per channel	5.7mW/channel
Operating Temperature range	10mK～5K
Storage Temp.	‑40℃～+70℃
RF connectors	SMA, SMP(customizable)
Length	200～600mm
Width	1.3mm
