1/2" Superflex Jumper, 4.3/10 Male straight to 4.3/10 Male straight

1/2＂Superflex cable of 4.3/10 Male Straight to 4.3/10 Male Straight ,Low PIM

Item NO.:
MJC-12S-4310M-4310M
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black/Customized
MOQ:
10

Inquiry now

Products Details

Product Name

1/2" Superflex Jumper, 4.3/10 Male straight to 4.3/10 Male straight

Product Features

Stable Impedance

Low Signal Reflection

Outstanding Intermodulation Suppression Capability

High-insulation

Technical &Mechanical Specifications

Characteristic Impedance	50 ohm
Frequency Range	DC-6GHz
VSWR	≤1.12(DC-3GHz)
PIM	≤-160dBc
Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ
Durability	Mating cycles ≥500
Body	Brass, Tri-Alloy plating
Insulator	PTFE, NATURAL
Contact PIN	Phosphor Bronze,Ag plating
Temperature Range	-40℃～+85℃

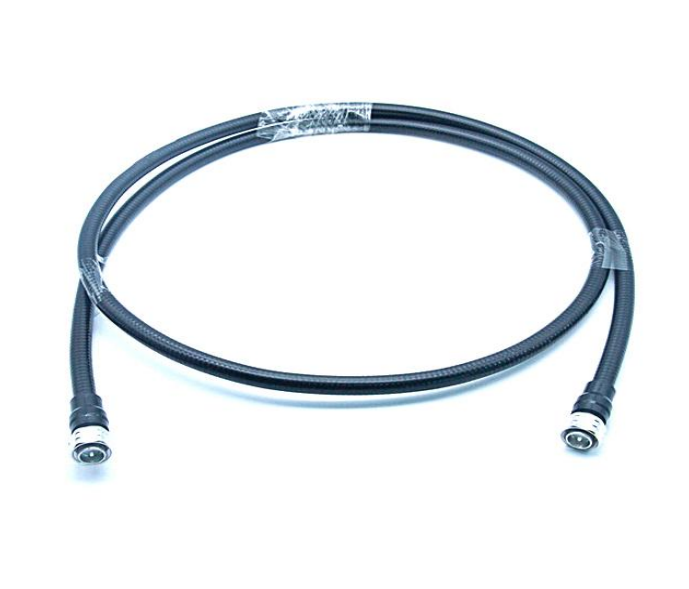

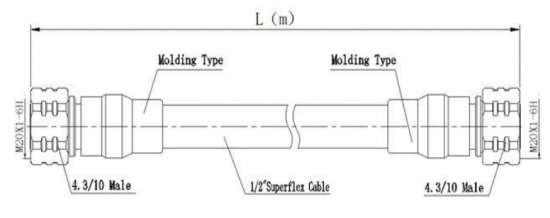

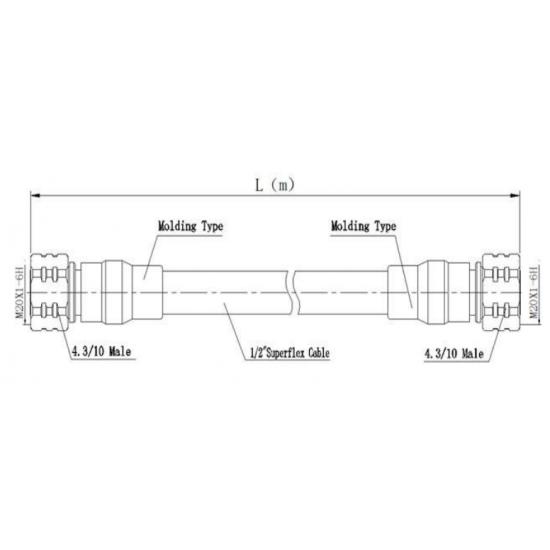

Product Pictures:

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 1/2" Superflex Jumper, 4.3/10 Male straight to 4.3/10 Male straight
Im interested in your "1/2" Superflex Jumper, 4.3/10 Male straight to 4.3/10 Male straight", please inform me more detailed product information and price. Thankyou!

Tags :

Categories

New Products

Related Products

LMR240 0.5M Jumper Cable with N male connectors

LMR240NMNM-0.5 Jumper cable uses 0.5meter of LMR-240 cable. This jumper cable is fitted with N Male connectors on both sides. The crimp connectors include heat shrink.

LMR400 30Feet Jumper Cable N male SMA male connectors

This Jumper Cable uses 30feet(9.14meters)of LMR-240 cable. It is fitted with N Male straight connector and SMA male straight connector on both sides. The crimp connectors include heat shrink.

RG402 2M Jumper Cable With 4310 Male Connectors

MNJC-RG402 4310JJ-2 Jumper cable uses 2meters of RG402 white pvc cable. This jumper cable is fitted with 4310 Male connectors on both sides. The crimp connectors include heat shrink.

3m and 6m 1/2＂Superflex jumper cable with 4.3/10 Male Straight connector at both sides

1/2＂Superflex cable of 4.3/10 Male Straight to 4.3/10 Male Straight ,Low PIM

Jumper Cable 3M ½SF N(m)-N(m)

1/2＂Superflex jumper cable with N Male to N male Connector

LMR240 0.6M Jumper Cable with N male and QMA male connectors

LMR240NMQM-0.6 Jumper cable uses 0.6meter of LMR-240 cable. This jumper cable is fitted with N Male and QMA male connectors on both sides. The crimp connectors include heat shrink.

5m 1/2＂superflex feeder cable with 4.3/10 Male Straight connector to 7/16 DIN male right angled

1/2＂Superflex cable of 4.3/10 Male Straight to 7/16 DIN male right angled ,Low PIM

1/3/5M RG58 Jumper Cable with BNC male to BNC male connectors

RG58 Jumper cable uses 1/3/5 meter of RG58 cable. This jumper cable is fitted with BNC Male to BNC Male connectors on both sides. The crimp connectors include heat shrink.

LMR240 0.6M Jumper Cable with QMA Male Right Angel connectors

MJ-LMR240-QMAMRA-0.6 Jumper cable uses 0.6meter of LMR-240 cable. This jumper cable is fitted with QMA Male Right Angel Connectors on both sides. The crimp connectors include heat shrink.

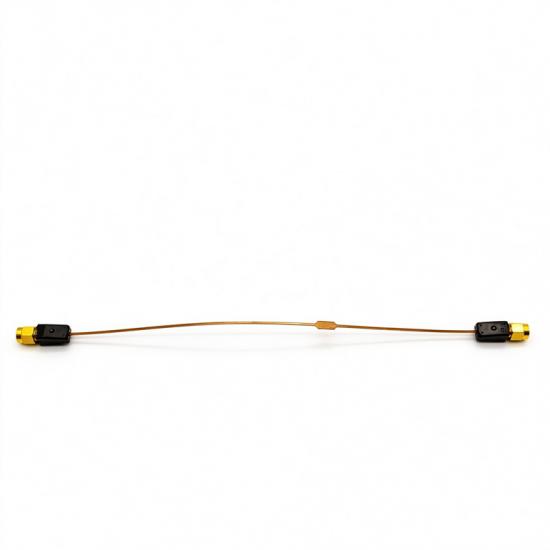

Cryogenic Flexible RF Cable DC~18GHz, 10mK~5K Ultra Low Temp Coaxial Jumper for Quantum Computing Radio Astronomy
