Product Name
Maniron 700MHz Bi-directional Repeater Signal Booster
Product Features
◆ High gain: UL≥75dB, DL≥80dB; Max DL output power up to 31.5dBm
◆Low noise figure ≤6dB, excellent linearity and low spurious emission
◆LED status alarm for power and ALC working condition
Technical & Mechanical Specifications
| Electrical specification | Uplink | Downlink | |
| Frequency Range | 794-806MHz | 764-776MHz | |
| Max .Gain | ≥75dB | ≥80dB | |
| Max .Output Power | ≥20dBm | ≥31.5dBm | |
| Bandwidth | 12MHz | ||
| MGC（Step Attenuation） | 31dB / 1dB step | ||
| Automatic Level Control | ≥ 20dB | ||
| Gain Flatness | ≤ 4dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36dBm | ≤ -36dBc |
| 1GHz~12.75GHz | ≤ -30dBm | ≤ -30dBc | |
| Spurious Emission | 9KHz~1GHz | ≤ -36dBm | ≤ -36dBm |
| 1GHz~12.75GHz | ≤ -30dBm | ≤ -30dBm | |
| Noise Figure | ≤ 6dB | ||
| V.S.W.R | ≤ 1.5 | ||
| Group Delay | ≤ 0.5μs | ||
| LED Alarm | Standard | ||
| Power LED | Power Indicator | ||
| ALC LED | Orange @ ALC 1~5dB, Red @ ALC 20dB~25dB; | ||
| Mechanical Specifications | Standard | ||
| I /O Port | N--Female | ||
| Impedance | 50 ohm | ||
| Operating Temperature | -25℃~+55℃ | ||
| Environment Conditions | IP55 | ||
| Dimensions | 435*325*120mm | ||
| Weight | ≤ 20KG | ||
| Power Supply | Input AC90~264V | ||

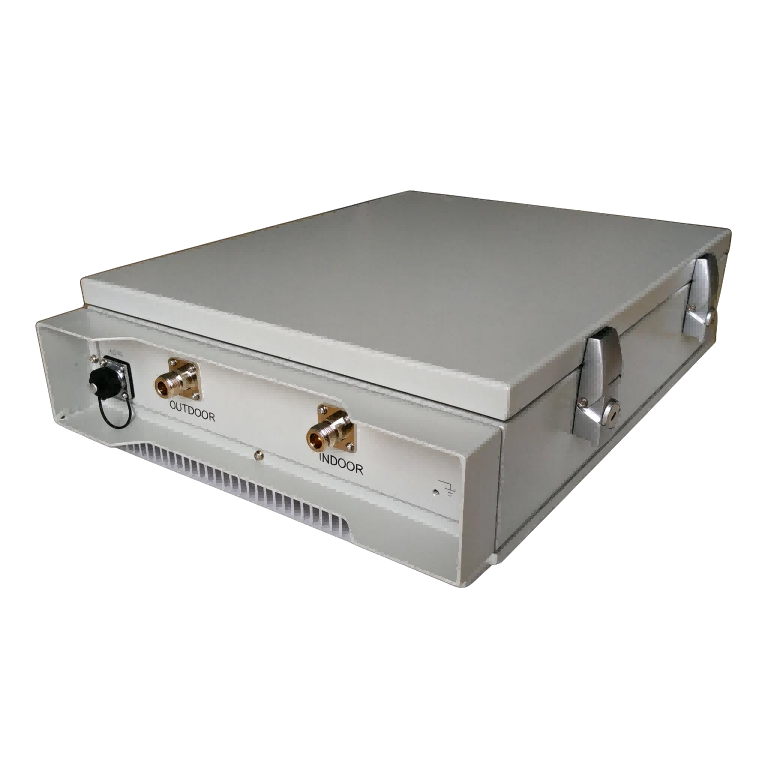

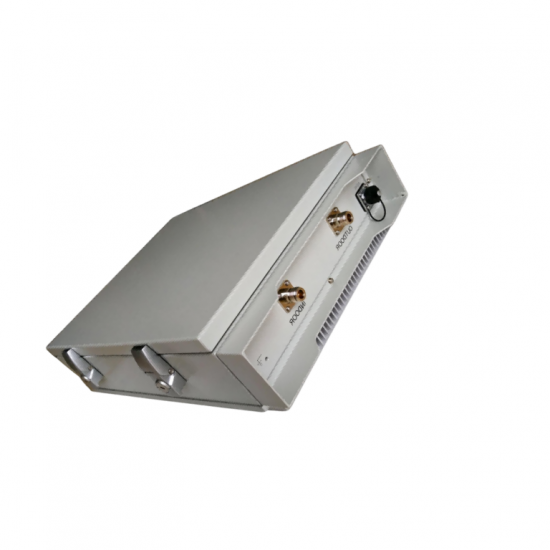

Product Picture
