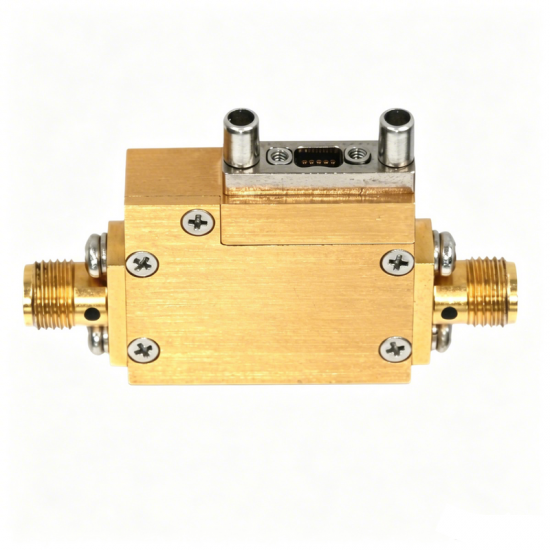

Cryogenic Low Noise Amplifier 4-8GHz 40dB Gain 3K Noise Temperature SMA-K Interface LNA for Cryo Measurement

4-8GHz wide working frequency band, meets microwave cryogenic test requirements Ultra low noise temperature 3K, effectively reduce signal noise under cryogenic environment Stable high gain of 40dB, realize high-fidelity weak signal amplification
  • Item NO.:

    MHF-C-B-009
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Gold
  • Products Details

Product Introduction

MHF-C-B-009 is a 4–8 GHz cryogenic LNA. It offers 40 dB gain and 3 K noise temperature at 11.25 mW power consumption. SMA-K RF ports, 9-pin DC connector. Compact 25.7×20×7.8 mm for quantum and radio astronomy applications.


Application

Ultra‑low noise temperature: 3K


Main Technical Specifications

Model No.

Frequency Range (GHz)

Gain (dB)

Noise Temperature (K)

Power Consumption (m W)

Dimensions (mm)

MHF-C-B-009

4-8

40

3

11.25

25.7×20×7.8


Interface Definition

Interface

Function Symbol

Description

Interface Type & Definition

Microwave Interface

IN, OUT

Signal input and output

SMA-K / SMA-K

Power Supply Interface

Vg, vd, GND

Gate voltage, Drain voltage, Ground

9*pin micro-rectangular connector
