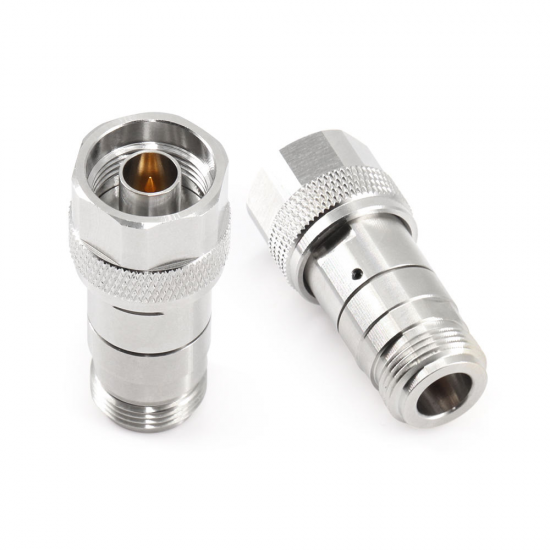

Coaxial DC Block (6MHz~18GHz, 50/100/250V, N Male~N Female)

Coaxial DC Block (6MHz~18GHz, 50/100/250V, N Male~N Female)

Coaxial DC Block 6MHz-18GHz, 50/100/250V, N Male to N Female connector for reliable RF signal isolation and high-frequency applications.

  • Item NO.:

    MDB-XX-18-N/MF

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Silver
Inquiry now
  • Products Details

Product Name

Coaxial DC Block (6MHz~18GHz, 50/100/250V, N Male~N Female)


Product Feature

◆ Wide bandwidth
◆ Low loss
◆ Easy to install
◆ Excellent performance


Technical Specification

Model No.

MDB-XX-18-N/MF(XX means DC Voltage in V)

Frequency Range

6MHz~6GHz

6~8GHz

8~12.4GHz

12.4~18GHz

DC Voltage

50V/100V/250V

Power

2W

Insertion Loss

0.2dB

0.3dB

0.5dB

0.6dB

Max. VSMR

1.15

1.2

1.25

1.3

Connector Type

N Male to N Female

Impedance

50Ω

Temperature Range

-55~+100℃

Plating and Coating

D.CuSnZn5 (Ternary alloy)

Scan data for attenuation and VSMR

10MHz~18GHz
