Product Name

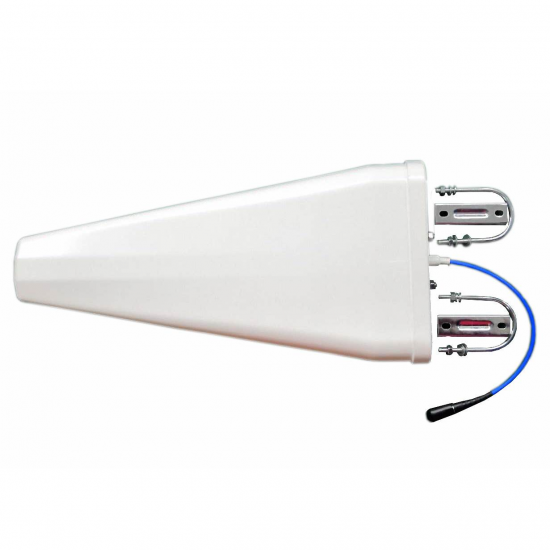

698-27000MHz 50W SISO log-periodic antenna
Product Features
◆ Wide Frequency Band
◆ Low VSWR
◆ High Gain
Electrical & Mechanical Specification
|
Model No. |
MLA-727-NF-140 |
||
|
Frequency Range(MHz) |
698-960 |
1710-2700 |
|
|
Gain(dBi) |
9.5±0.5 |
11.5±0.5 |
|
|
Polarization |
Vertical |
||
|
Beam width |
Horizontal(°) |
65±15 |
58±10 |
|
Vertical(°) |
60±15 |
55±10 |
|
|
VSWR |
≤1.8 |
||
|
PIM, 3rd Order, 2 x 37W(dBc) |
-140 |
||
|
Maximum input power(W) |
50 |
||
|
Lightning protection |
DC Ground |
||
|
Impedance(Ω) |
50 |
||
|
Connector Type |
N Female |
||
|
Connector position |
Bottom |
||
|
Size(mm) |
440×210×65 |
||
|
Antenna Weight(kg) |
0.65 |
||
|
Rated wind velocity(m/s) |
36.9 |
||
|
Operational Temperature(℃) |
-40~55 |
||
|
Radome material |
ABS |
||
|
Mounting hardware(mm) |
φ35~φ50 |
||
